Ricoh MT-P2 - Fusing;Exit Motor

Fusing/Exit Motor
Remove:
• Rear upper cover
1. Open the I/O board ( x 2)

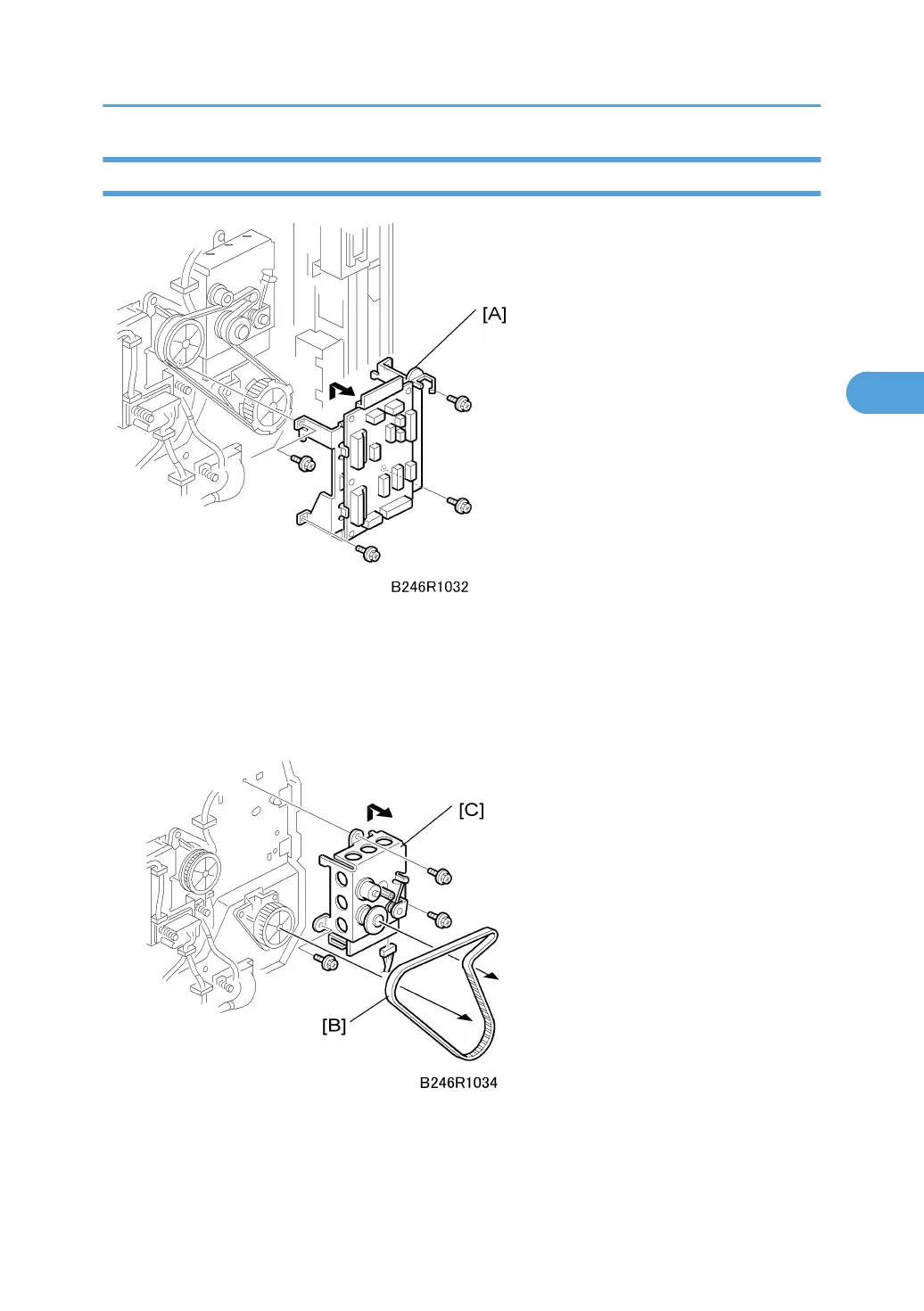

2. CNB bracket [A] ( x 4,  x all)
3. Timing belt [B]
4. Fusing/exit motor bracket [C] ( x 1)
5. Fusing/exit motor ( x 2) inside the bracket (not shown)
