Ricoh MT-P2 - Tandem Right Tray Paper Sensor Replacement

Tandem Right Tray Paper Sensor Replacement

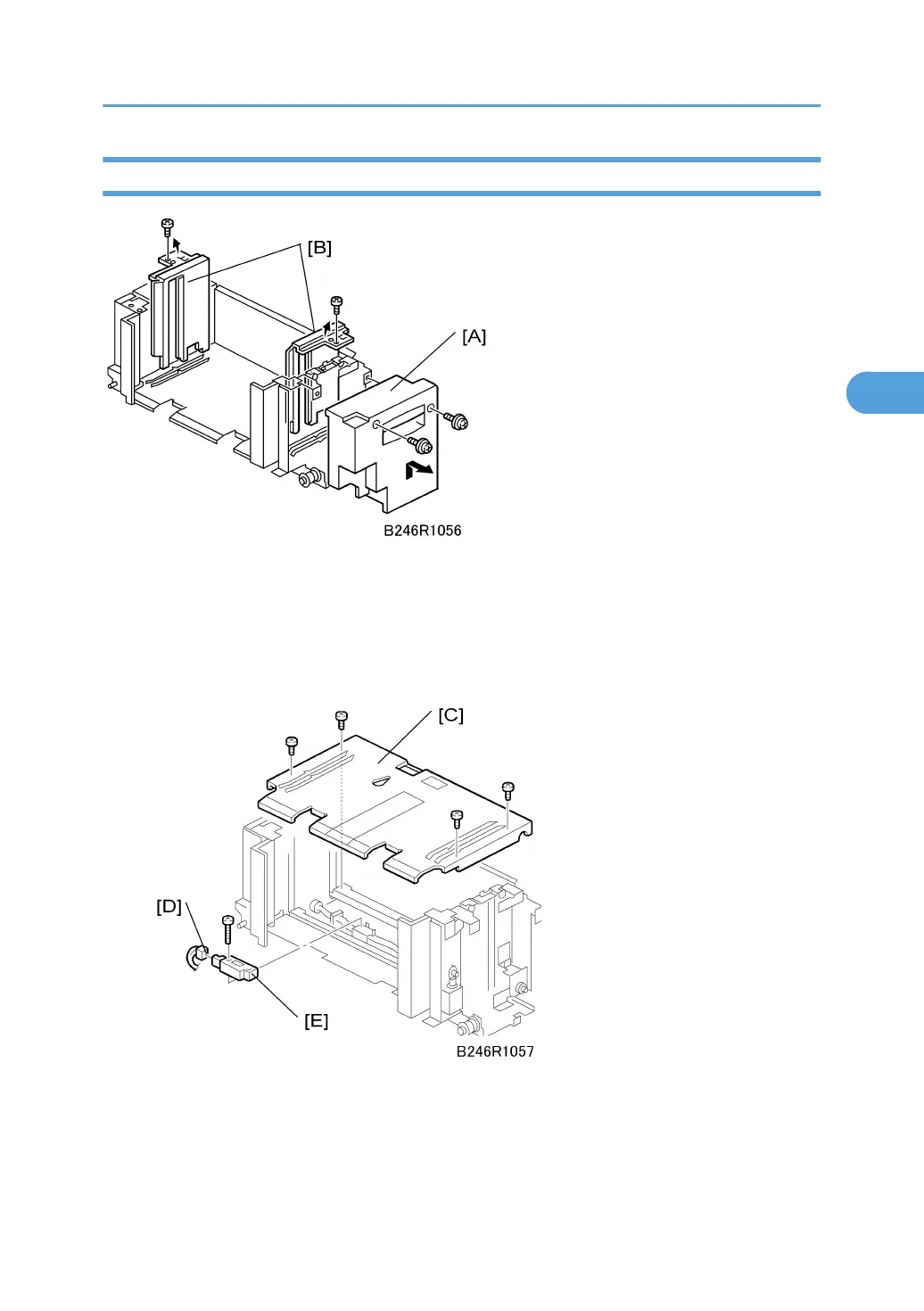

1. Turn off the machine.
2. Remove the right tandem tray. See "Paper Feed"> "Paper Tray Removal"
3. Inner cover [A] ( x 2)
4. Side fences [B] ( x 1 each)
5. Bottom plate [C] ( x 4)
6. Connector [D] ( x 1)
7. Sensor [E] ( x 1)
