Ricoh MT-P2 - Toner Supply Motor

• Before installing a new toner end sensor, clean the toner end sensor port [C].
Toner Supply Motor
1. Open the front door.
2. Swing the toner unit out of the machine and remove the toner bottle.

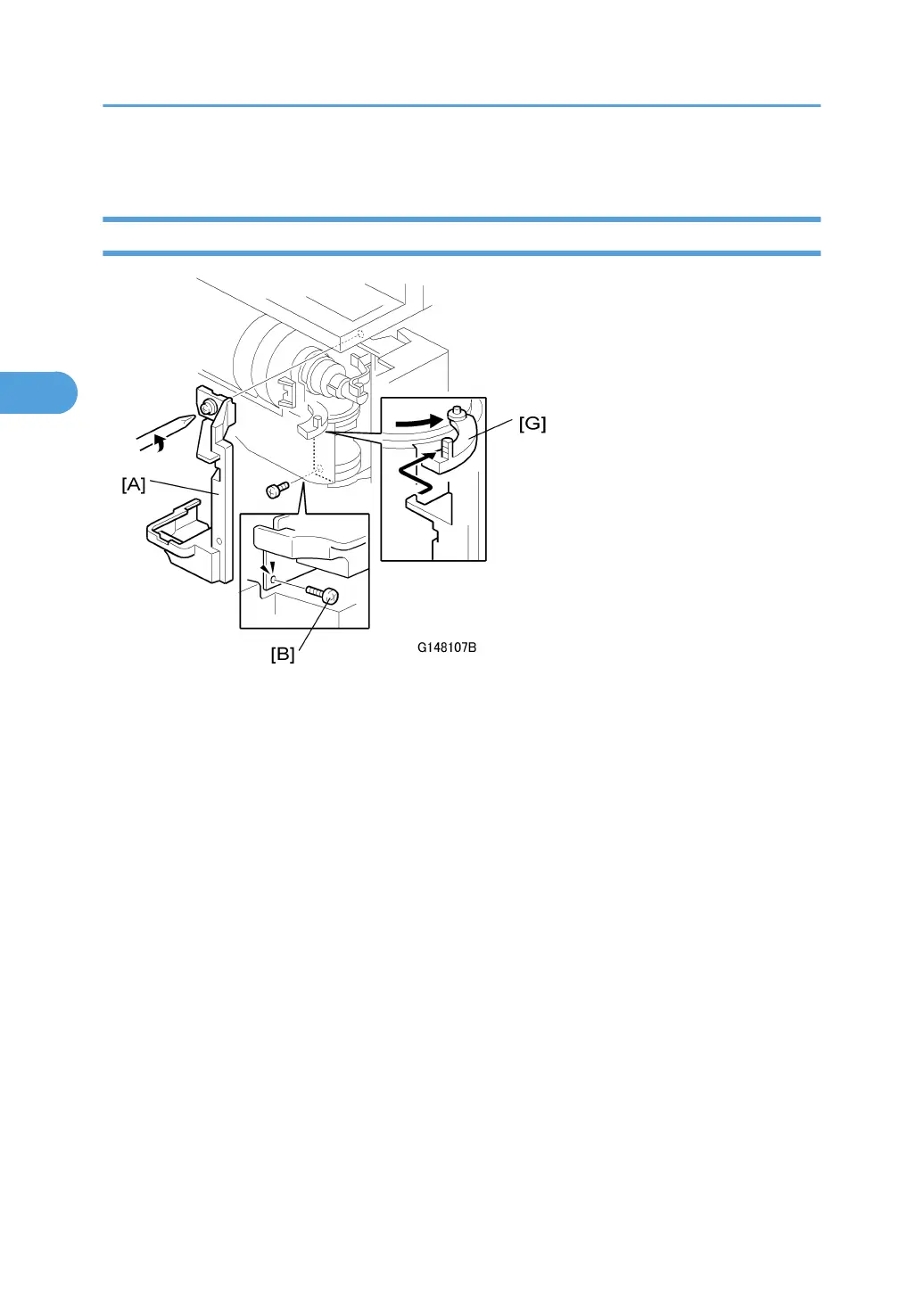

3. Bracket [A] ( x 1)
4. Lock plate [B] ( x 1)
3. Replacement and Adjustment
168
3
