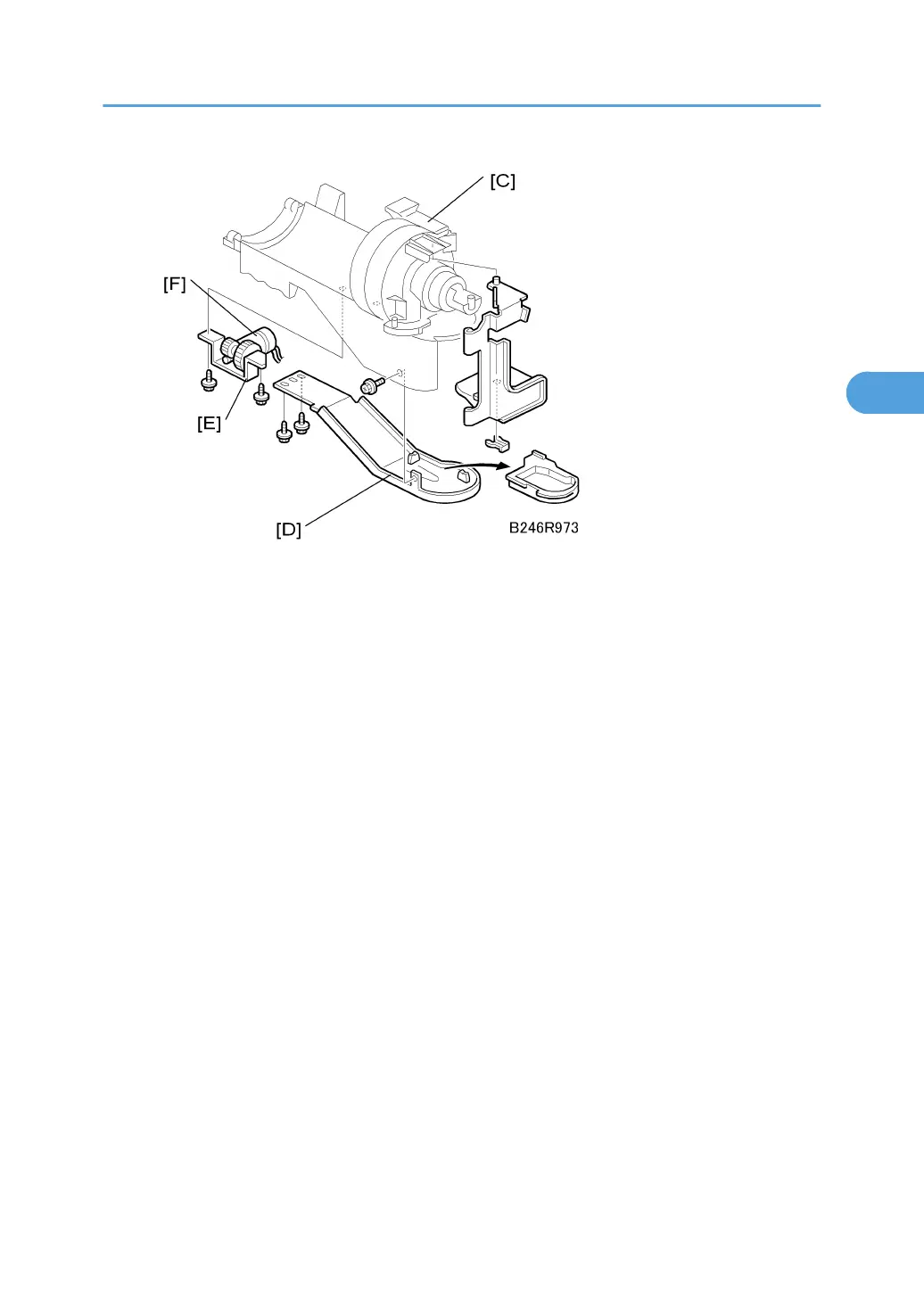

5. Toner bottle unit [C] ( x 1, harness x 1,  x 1)
• The c-clamp is under the toner unit.
• Lift the toner bottle unit off the pegs and lay it on a piece of newspaper to avoid toner spill.
6. Bottom plate [D] ( x 3, harnesses x 2)
• 2 screws on the bottom, 1 screw on the side.
7. Toner supply motor bracket [E] ( x 2)
8. Toner supply motor [F] ( x 2)
