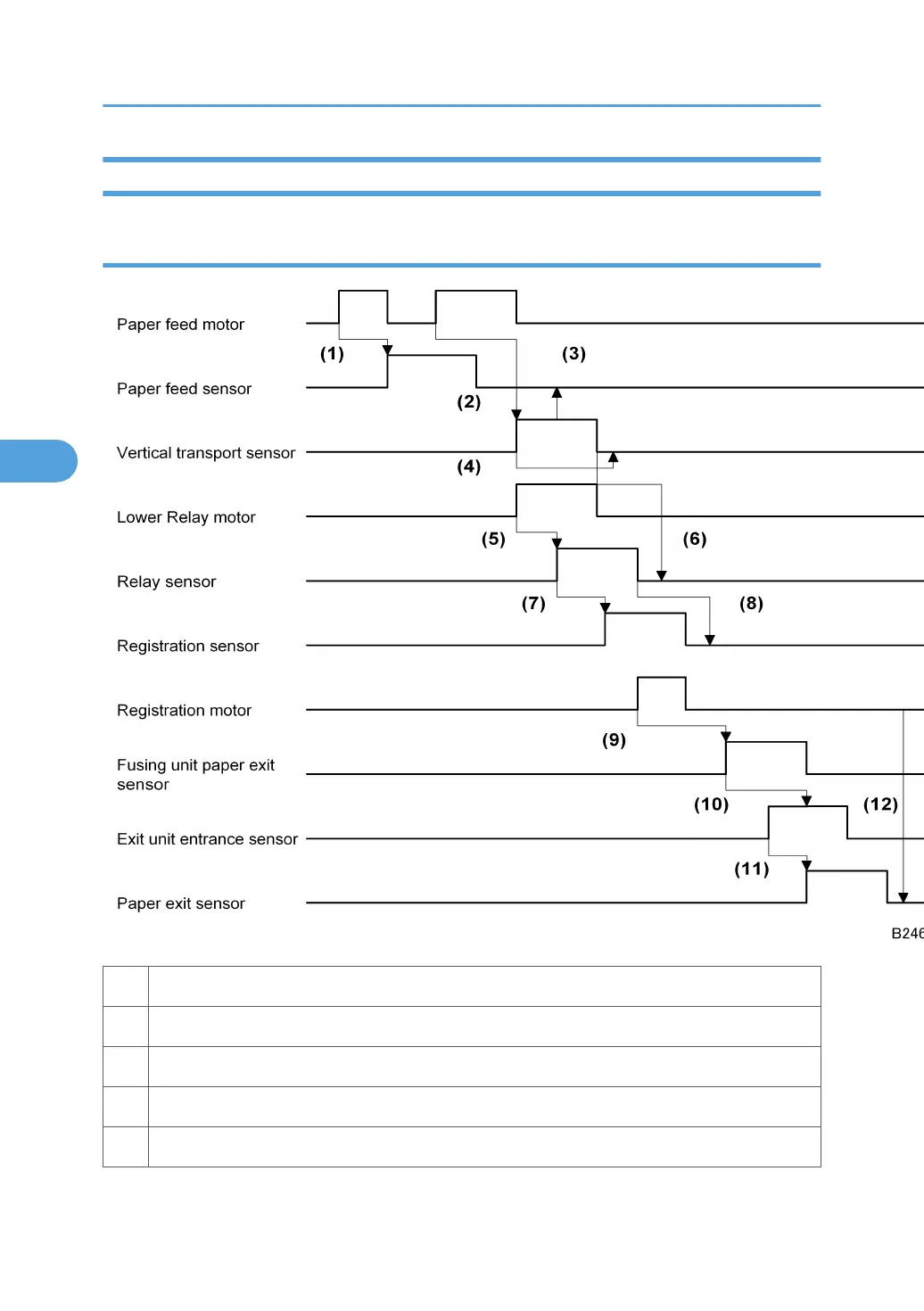

Timing Charts
Feed, Transport, Feed Out: Face-up
(1): Paper feed motor ON > Paper feed sensor does not switch ON at the correct time.
(2): Paper feed motor ON > Vertical transport sensor does not switch ON at the correct time.
(3): Vertical transport sensor ON> Paper feed sensor does not switch OFF at the correct time.
(4): Vertical transport sensor ON > Vertical transport sensor does not switch OFF at the correct time.
(5): Lower relay motor ON> Relay sensor does not switch ON at the correct time.
4. Troubleshooting
244
