Pick-up, Feed, Separation Roller Replacement

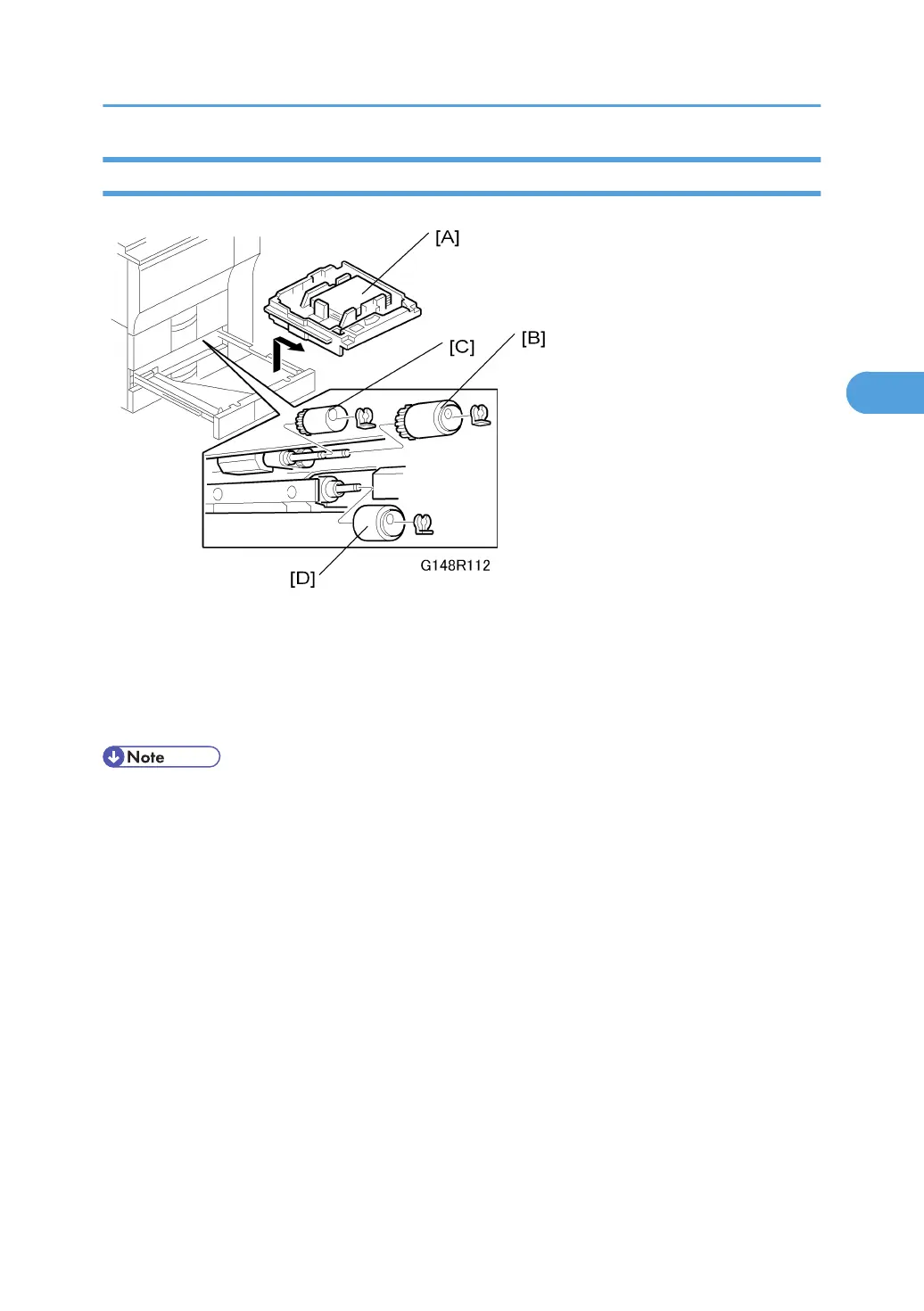

1. Remove the tray [A]
2. Feed roller [B] ( x 1)
3. Pick-up roller [C] ( x 1)
4. Separation roller [D] ( x 1)
• The operation of the FRR mechanisms for the tandem tray (Tray 1) and universal trays (Tray 2, Tray
3), are similar. These rollers are interchangeable.
• Do not touch the surface of new rollers during replacement.
