Ricoh MT-P2 - Pressure Roller Cleaning Unit

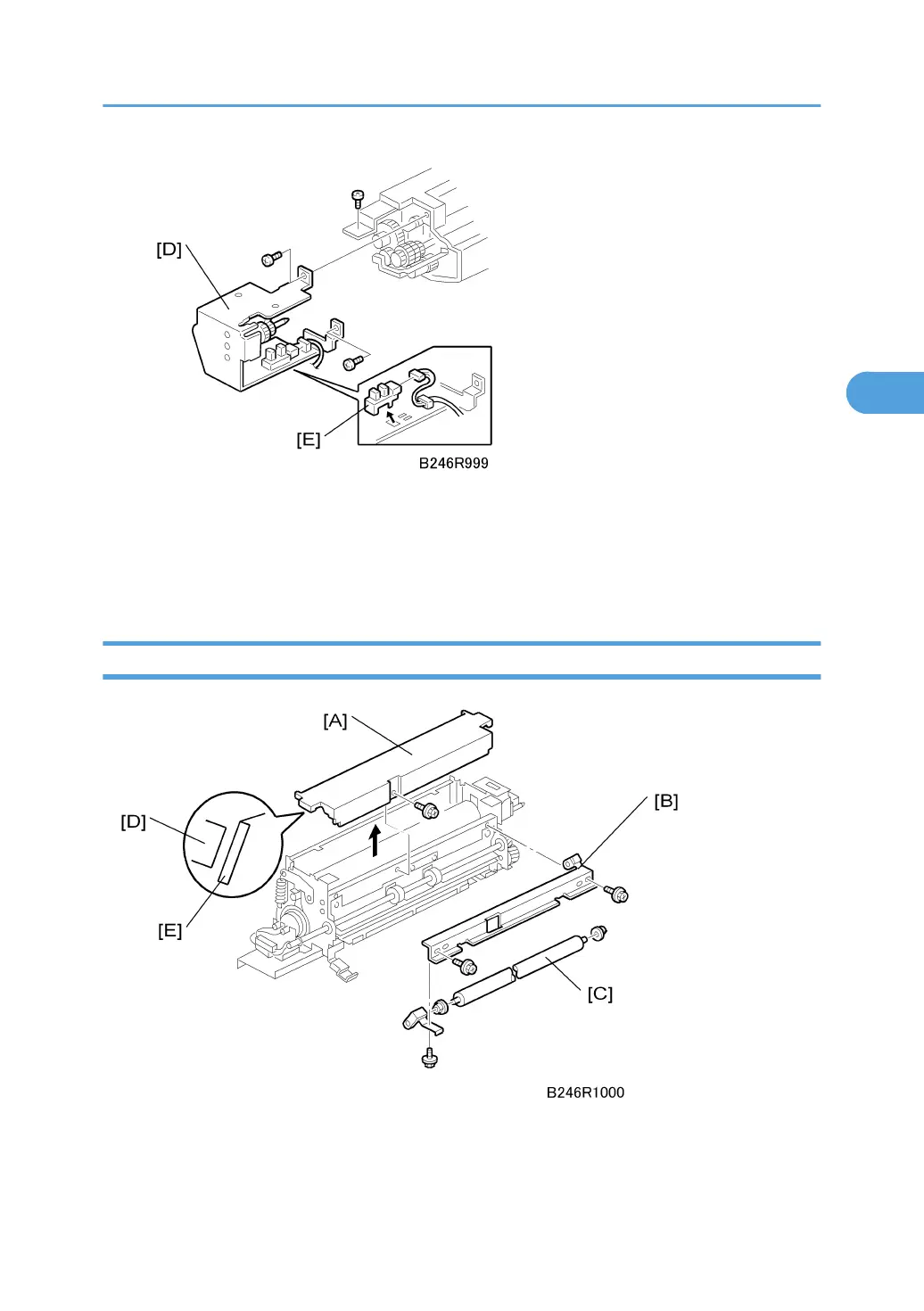

4. Web motor/sensor mount [D] ( x 3)
5. Web end sensor [E] ( x 1, harness x 1)
Reinstallation
• Make sure that the harness of the web driver motor is not pinched by the fusing inner cover
Pressure Roller Cleaning Unit
Remove:
• Fusing unit. See "Fusing Unit Removal"
