Ricoh MT-P2 - Front Door; Right Covers

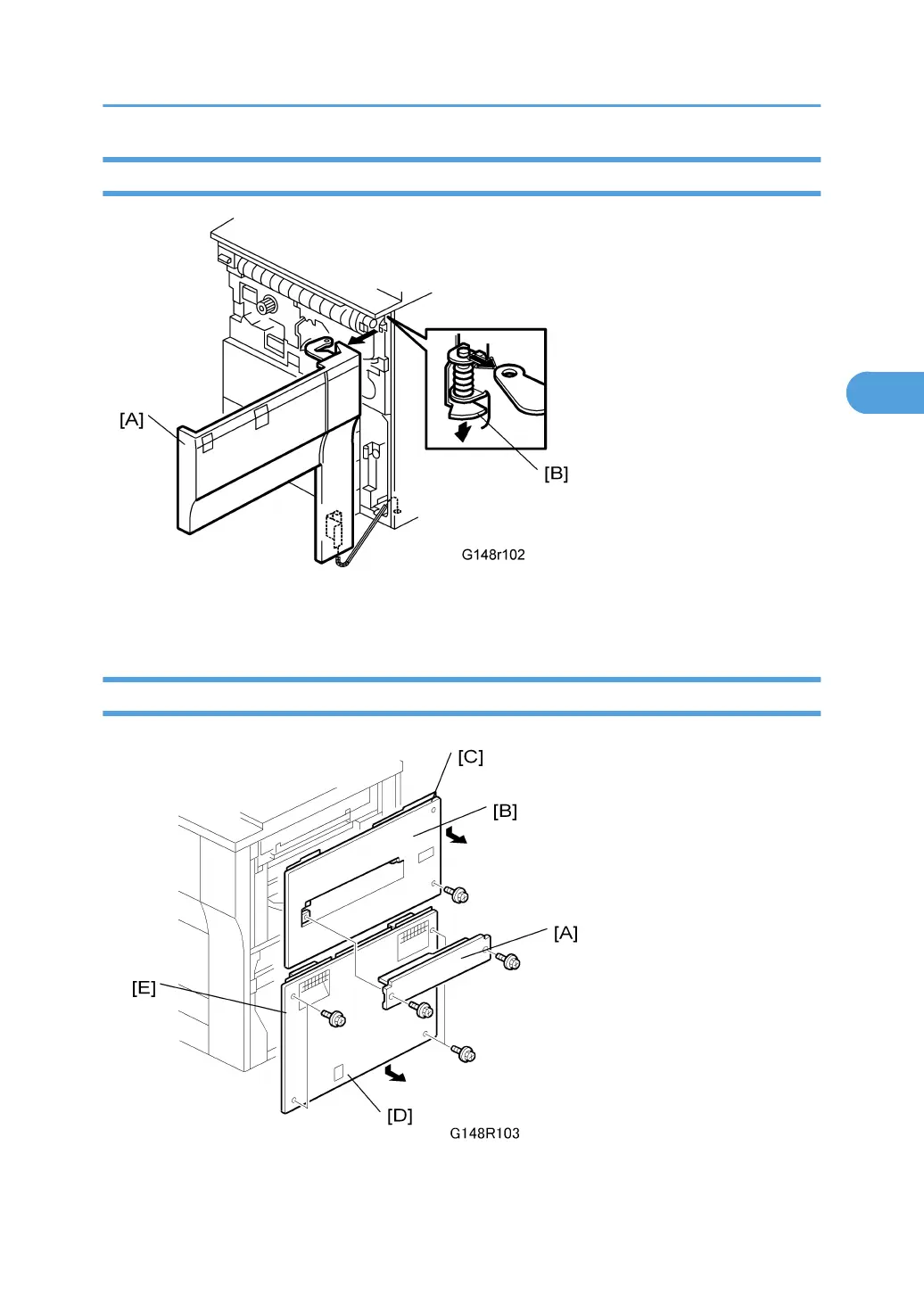

Front Door
While supporting the front door [A] with one hand, press down on the hinge bracket [B] then raise the door
slightly to remove it.
Right Covers
1. LCT entrance guide cover [A] ( x 2)
Operation Panel and External Covers
135
3
