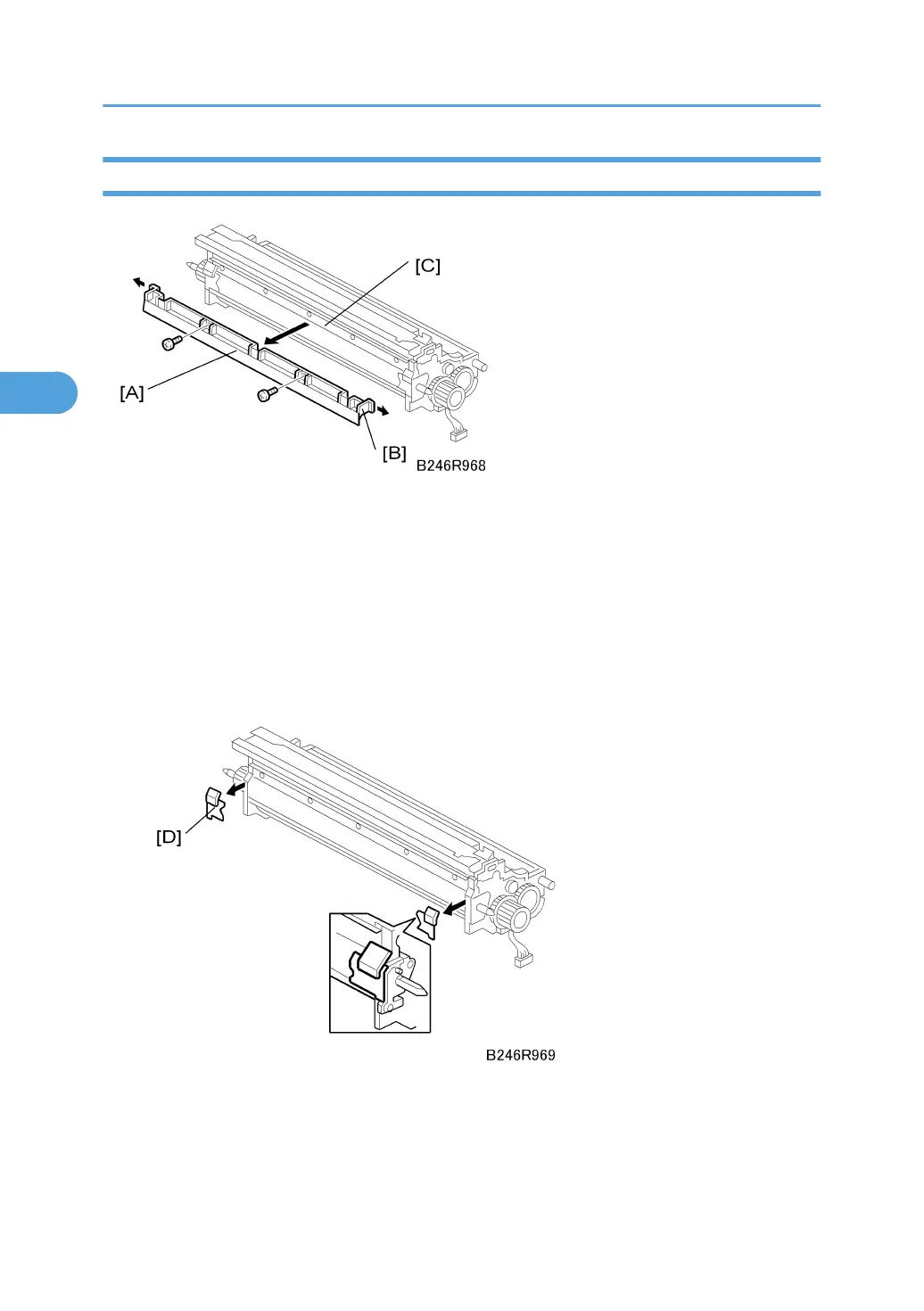

Entrance Seal and Side Seals
Remove:
• Development unit. See "Development Unit Removal"
1. Entrance seal bracket [A] ( x 2)
2. After removing the screws, press in the catches on either end [B] to release the entrance seal
bracket, then remove it.
• Clean the entrance seal bracket before re-installing it.
• When re-installing, make sure the tabs [C] and notches are engaged at four locations.
3. Side seals [D]
• Remove the side seals from both ends, clean the area, and replace with new seals.
3. Replacement and Adjustment
166
