Board Structure

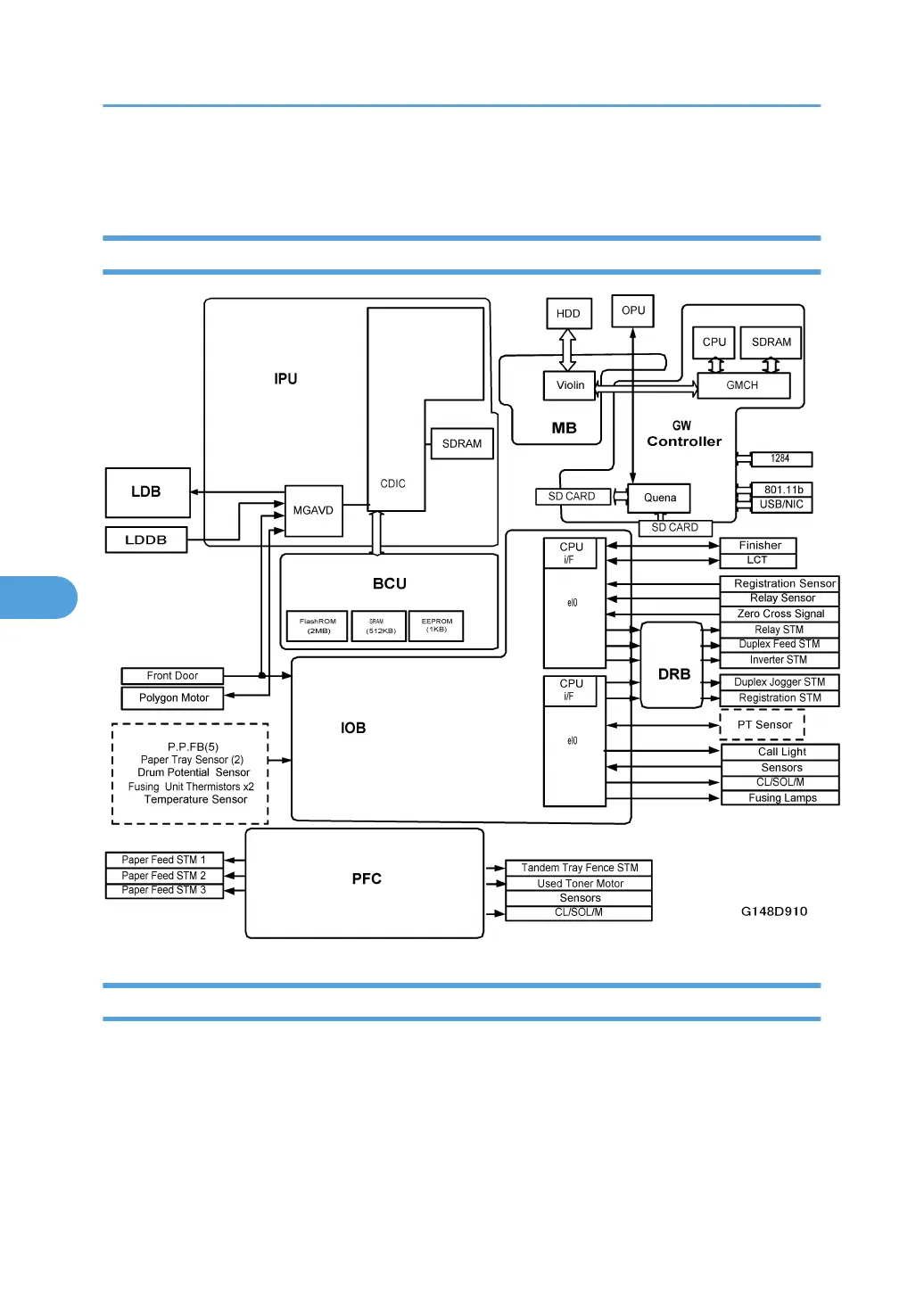

Block Diagram
Component Descriptions
IPU (Image Processing Unit)
Processes images scanned by the CIS and SBU.
All IPU Board DIP switches should be set to OFF.
IPU Board DIP SW 102
6. Details
438
6
