2. Duplex entrance sensor [B] ( x 1)
Duplex Transport Sensor 3

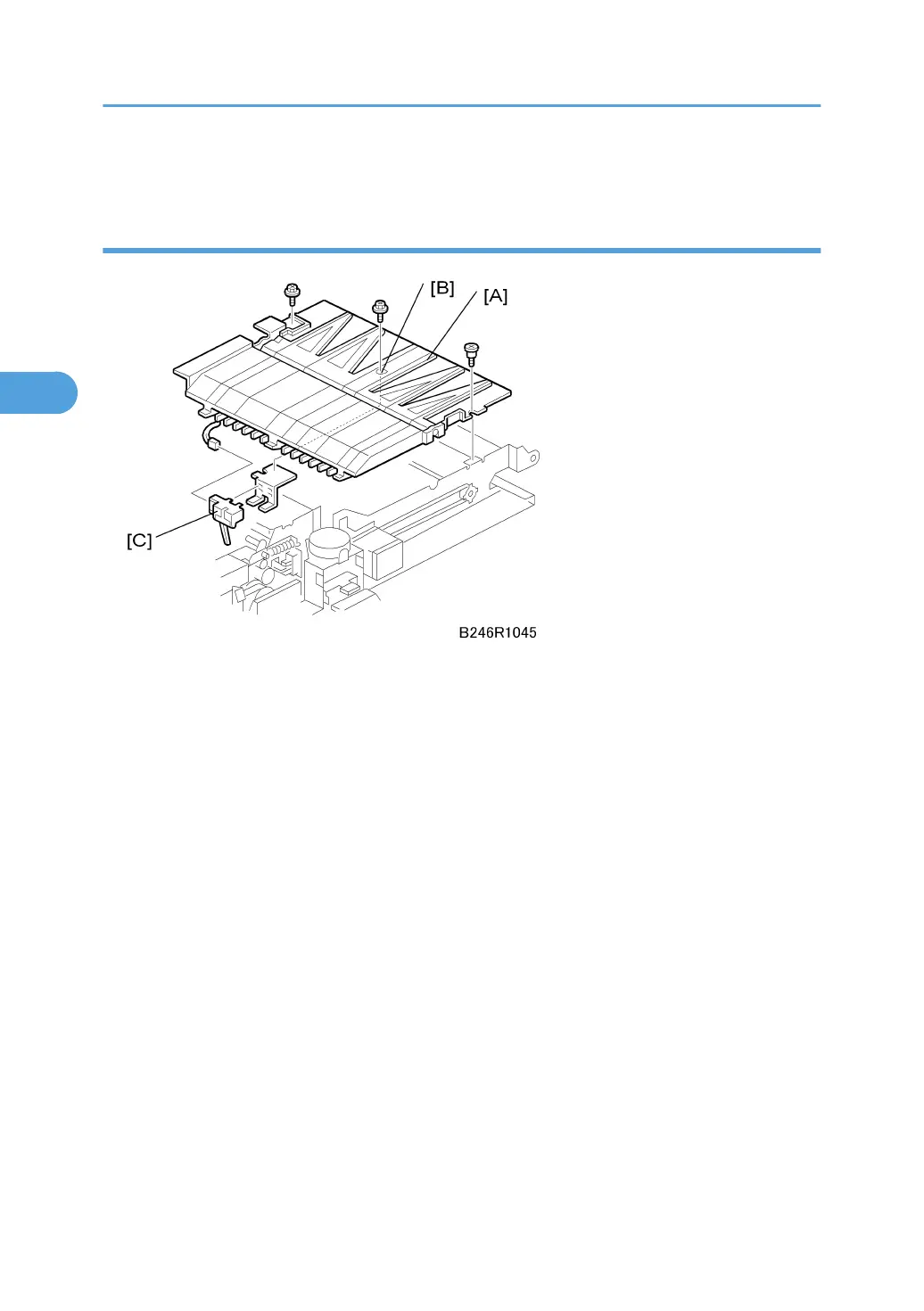

1. Right half of table [A] ( x 2, x 1)
• The front screw is a shoulder screw. Insert the screws in the correct holes when re-attaching.
2. Remove the screw [B] to release the sensor bracket below.
3. Transport sensor 3 [C] ( x 1)
3. Replacement and Adjustment
202
