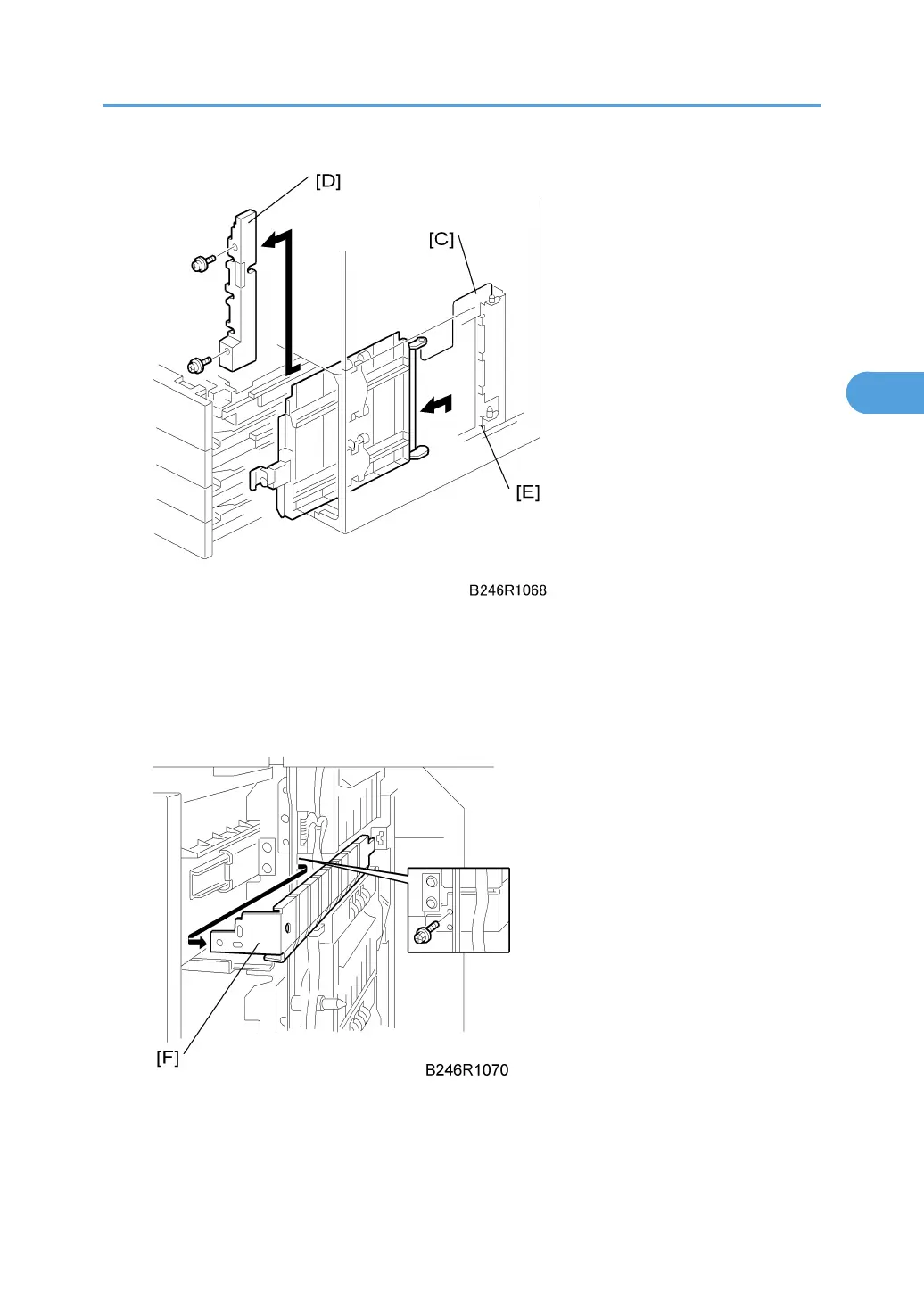

3. Vertical transport guide [C]
4. Inner cover [D] ( x 2)
Reinstallation
• When re-installing the vertical transport guide, remove the lower right cover then insert from [E].
5. Guide plate [F] ( x 1) (1st feed unit only)
Paper Feed
217
3
