Ricoh MT-P2 - Page 30

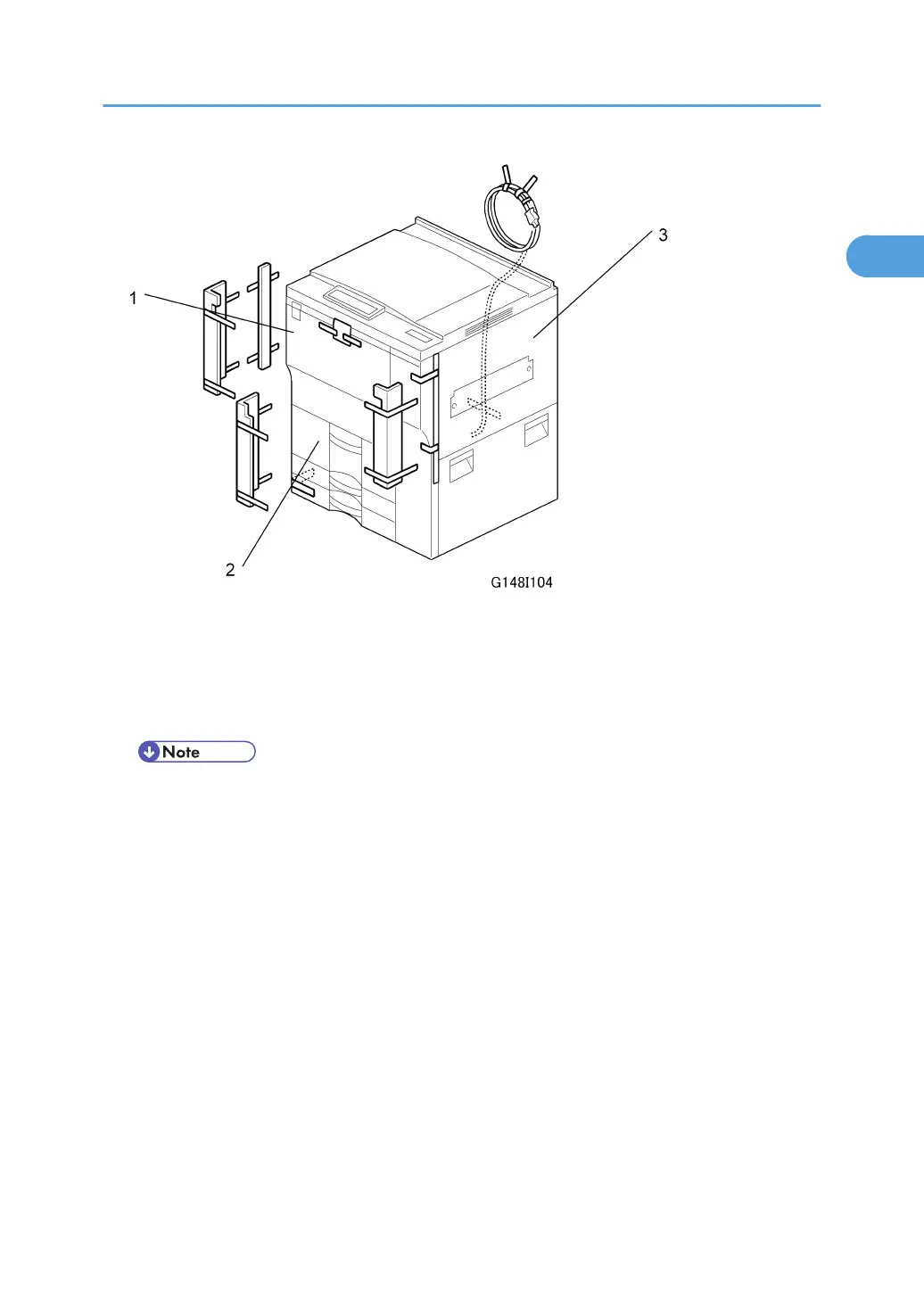

1. Unpack the machine and remove all the wrapping.
2. Remove all filament tape from the front [1] of the machine.
3. Open the lower tray [2] and remove the operating instructions holder and foot risers.
4. Remove the tape from the back [3] of the machine.
• Keep the filament tape and shipping retainers to prepare the machine for shipping in the future.
Main Machine (G148)
29
1
