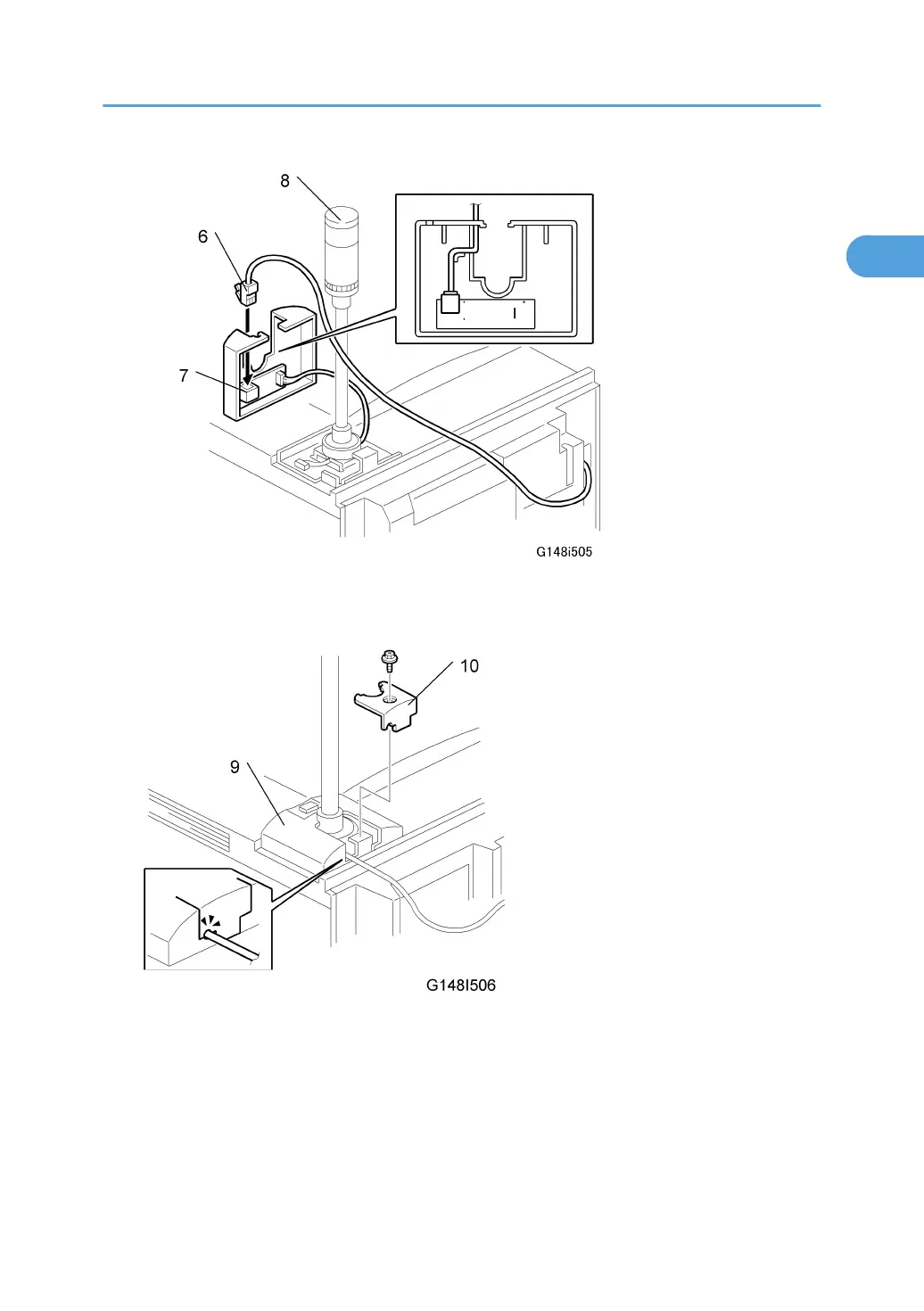

7. Connect the other end of the harness cable [6] to CN591 [7] on the cover.
8. Lead the cable [8] around the ribs of the cover.
9. Attach the LED stand front cover [9] to the base of the LED stand.
10. Fasten the LED stand rear cover [10] (x1).
Call Light Installation
