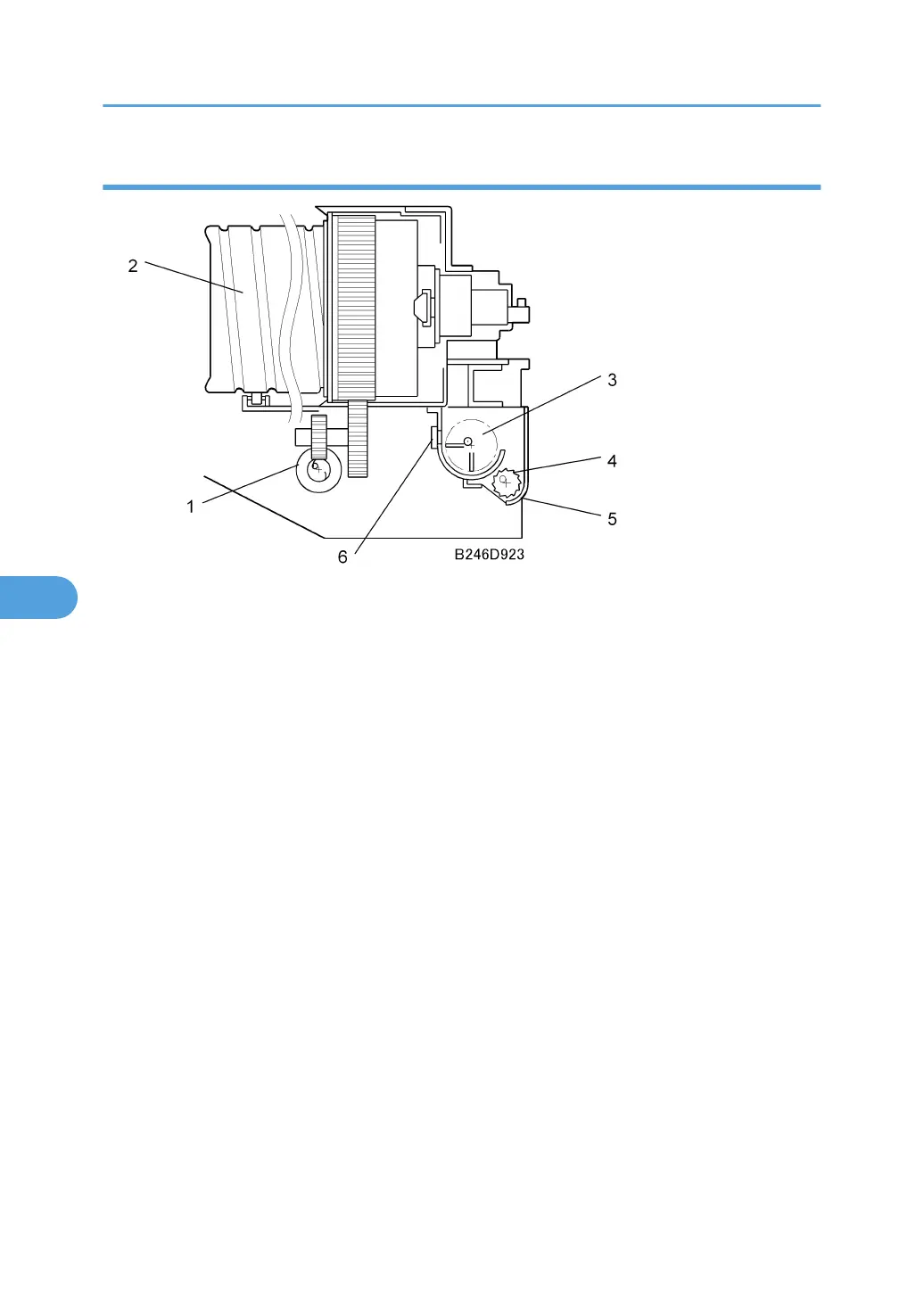

Toner Supply
1. Toner Supply Motor
2. Toner Bottle
3. Toner Agitator
4. Toner Supply Roller
5. Toner Hopper
6. Toner End Sensor
The toner supply roller carries toner from front to back in the hopper and into the development unit.
The toner supply motor rotates the toner bottle to supply toner. The cap of the bottle seals itself immediately
when the toner bottle is removed from its holder.
A toner recycling system separates old toner from toner that can be re-used. Reusable toner is carried to
the development unit, and old toner is sent to the toner collection bottle.
6. Details
