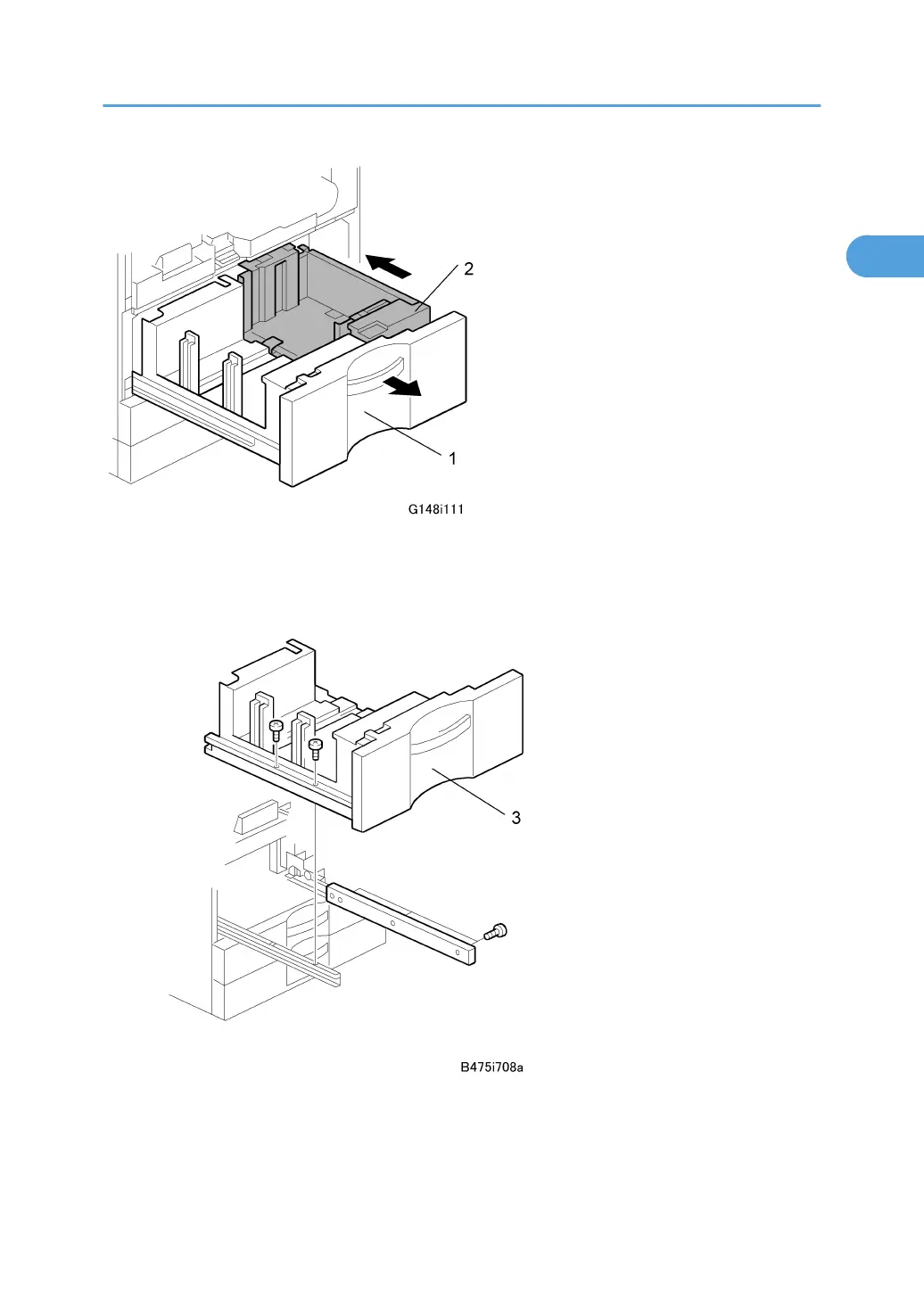

1. Draw out the tandem tray completely to separate the left and right sides of the tray, then
remove the front cover [1] ( x 2).
2. Push in the right tandem tray [2].
3. Remove the left tandem tray [3] ( x 5). Keep these screws.
A3/DLT Feeder Kit (B475)
