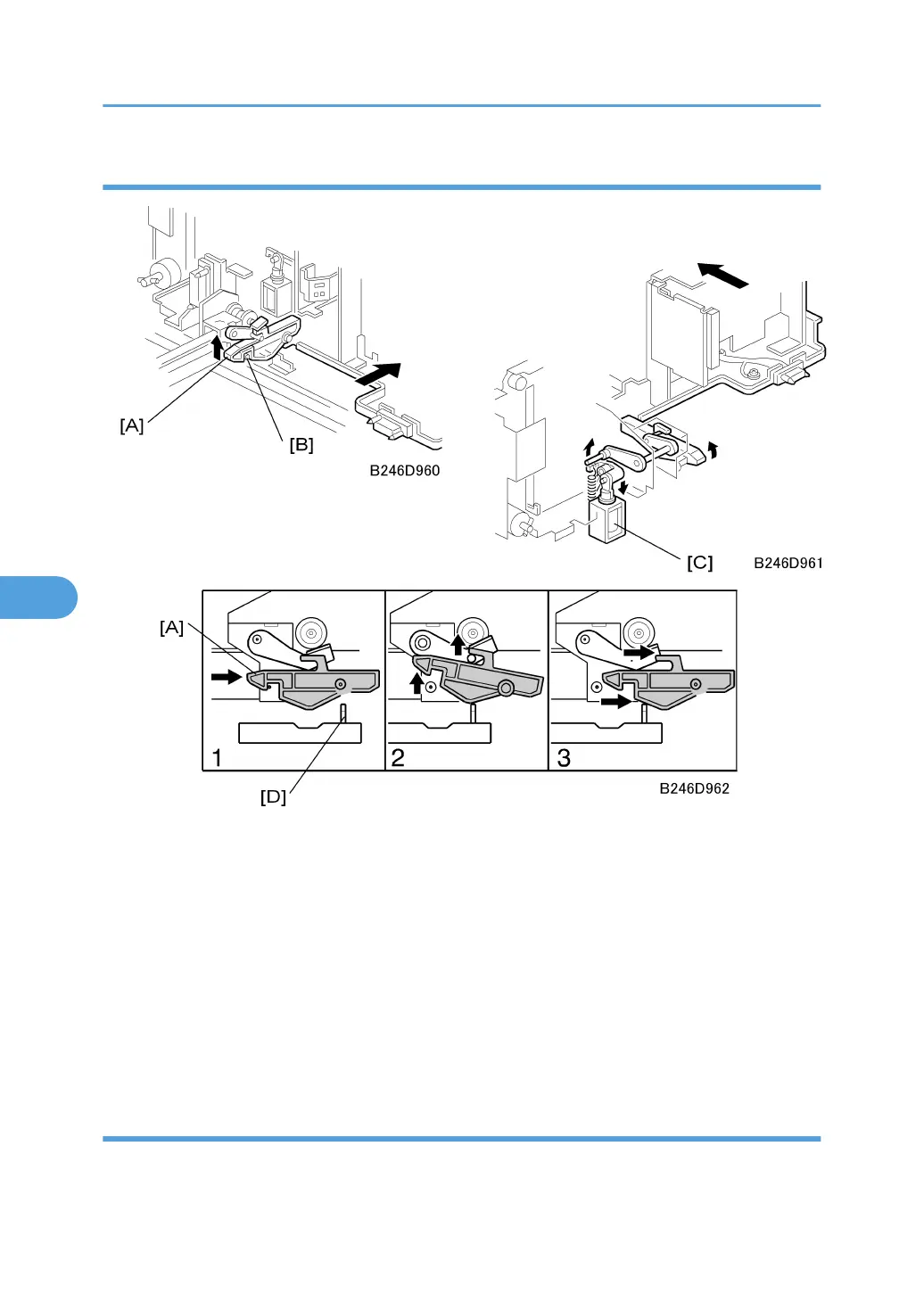

Connecting the Left and Right Sides of the Tray
When there is paper in the left tray:
• Lock lever [A] in the left tray catches the pin [B] in the right tray.
During copying, if there is no paper in the left tray:
• Right tray lock solenoid [C] turns on, which releases lock lever [A].
• The left tray can now be pulled out to load paper, even while paper is being fed into the machine
from the right tray.
When the tandem tray is drawn out fully:
• Projection [D] pushes up lock lever [A] so that both trays separate. This makes paper loading easier.
Paper Lift/Remaining Paper Detection
The machine detects when the 1st tray has been placed in the machine by monitoring the tray set signal
through the connector.
