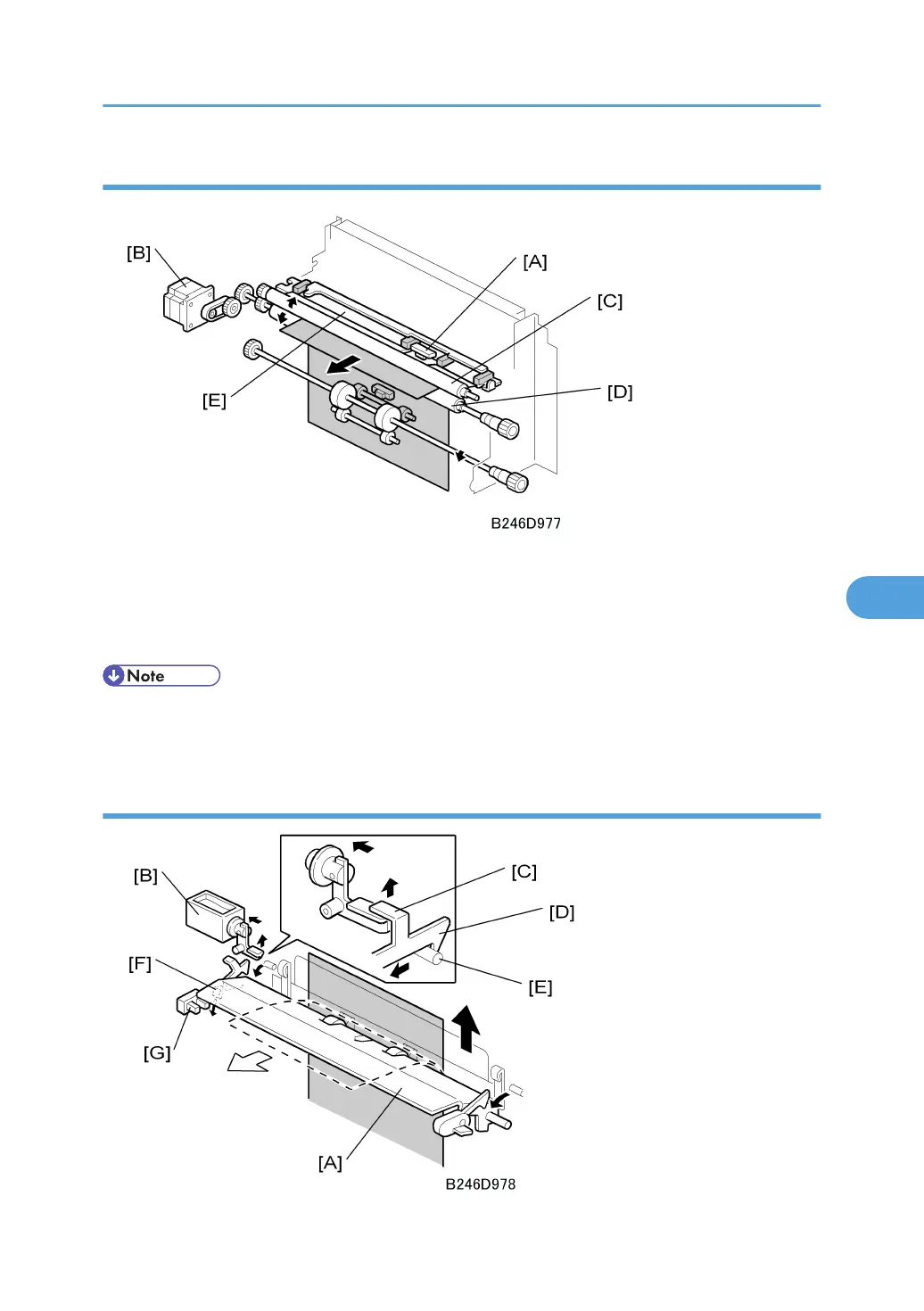

Paper Registration Drive
When the registration sensor [A] detects the leading edge of the paper, the registration motor [B] stops the
paper at the registration rollers [C, D] for a short while to correct the skew in the paper.
Mylar [E] touches the upper surface of roller [C]. This mylar removes dust from the paper while it passes
the registration rollers.
• Use SP1003 (Registration Buckle Adjustment) to adjust the registration motor timing for each paper
feed station or the duplex tray. For details see “5. Service Tables”.
Jam Removal at Paper Registration
Paper Feed
