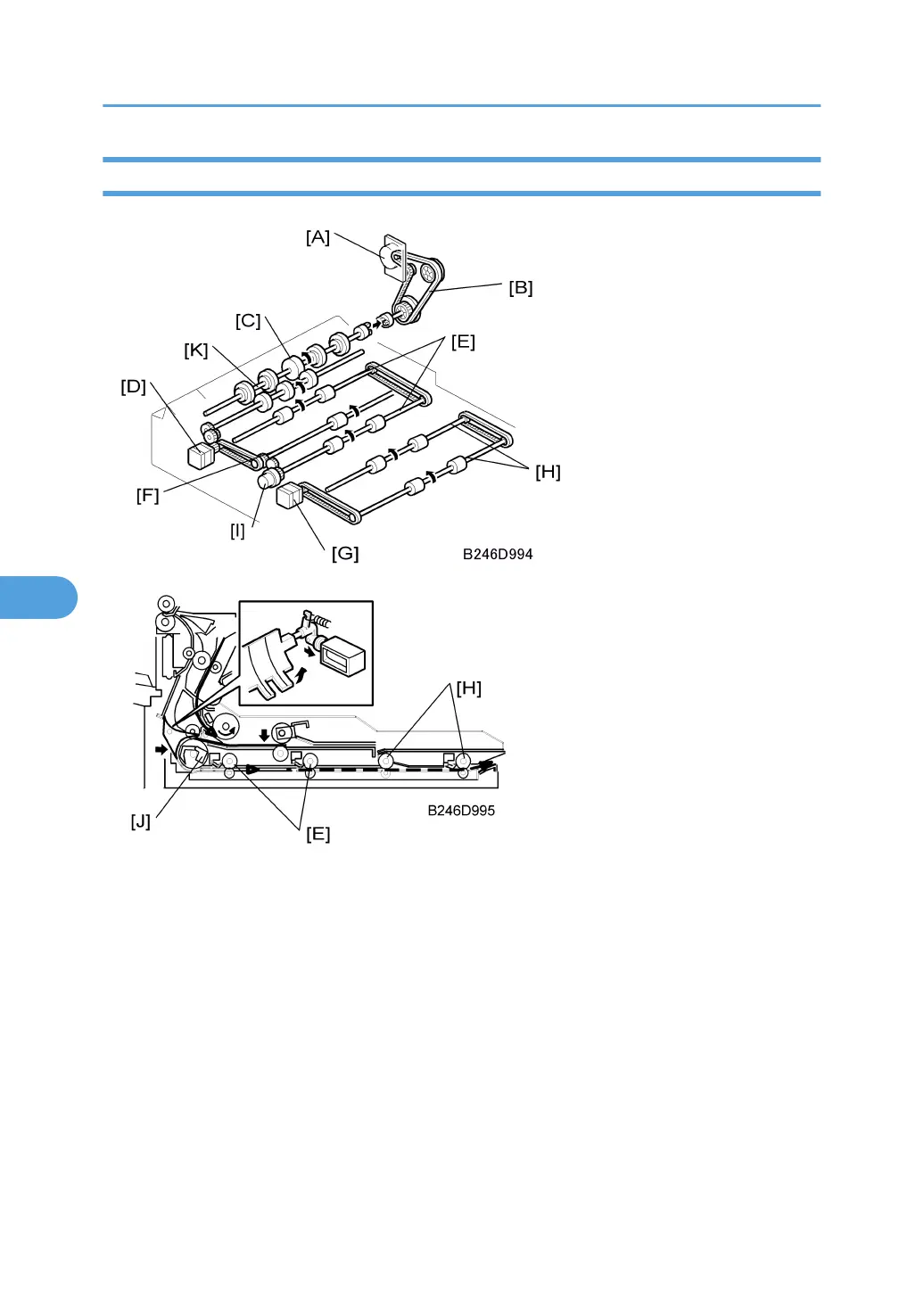

Duplex Drive
Fusing/exit motor [A] > Timing belt [B] > Inverter entrance roller [C]
Duplex inverter motor [D] > Timing belt > Reverse roller [F]
Duplex inverter motor [D] > Duplex transport gear [I] > Transport rollers 1, 2 [E]
Duplex Inverter motor [D] > Inverter exit roller [K]
Duplex transport motor [G] > Timing belt > transport rollers 3, 4 [H]
