3. Disconnect the LCT from the machine.

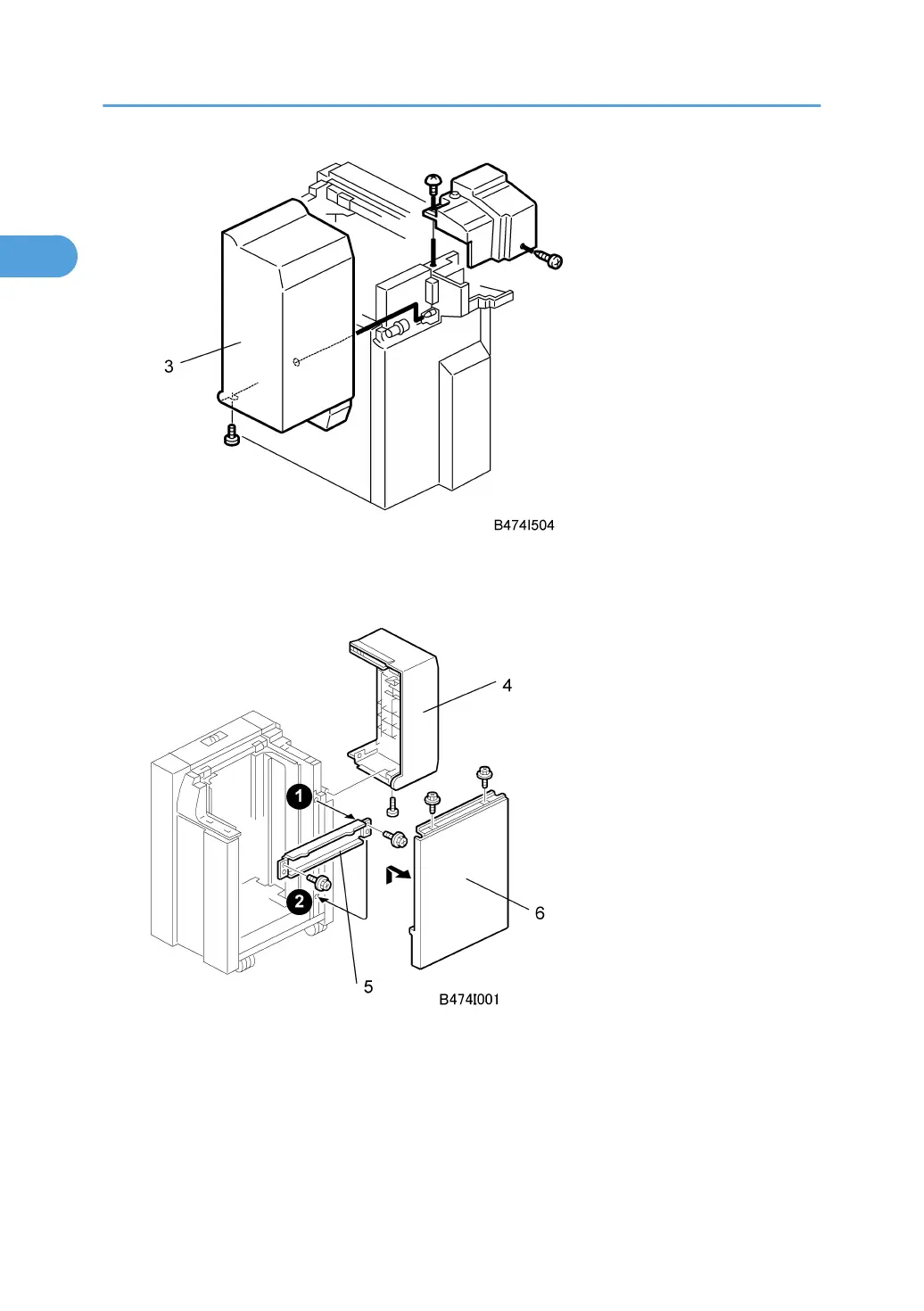

4. Remove the LCT upper cover [3].
5. Remove the LCT cover [4] ( x 1).
6. Remove the right stay [5] at ¶ and re-attach it below at · ( x 2).
7. Remove the right cover [6] ( x 2).
1. Installation
60
1
