6. FASTENING SETTING mode (Type M)
6-12
6.6.2 SEQUENTIAL FASTENING SETTING
The interlock release sequence for each spindle is set per interlock level.
Simultaneous or sequential fastening can be enabled by setting the interlock release sequence.
●SEQUENTIAL FASTENING SETTING
1) Select the TIGHTEN.SEQUENCE from the MULTI CONTROL SETTING menu. The following screen
will be displayed.

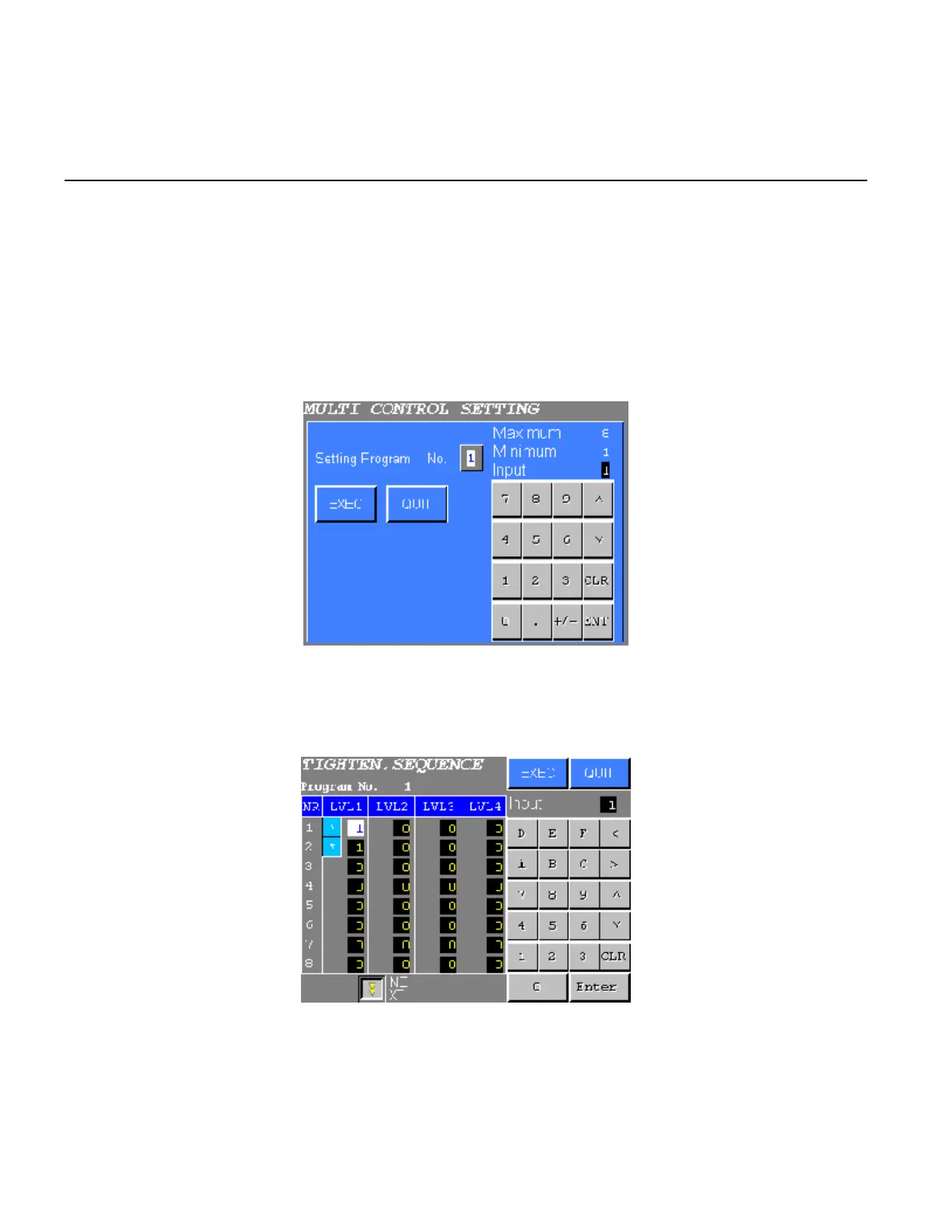

Figure 6.6-3 SEQUENTIAL FASTENING SETTING, PROGRAM NO. INPUT
2) Input the Program No. and press EXEC to display the SEQUENTIAL FASTENING SETTING
screen(SDN-DP06). When SDN-DP12 is used, settings of 16 NR are displayed.
Press QUIT to return to the MULTI CONTROL SETTING menu.
Figure 6.6-4 SEQUENTIAL FASTENING SETTING
3) Move the cursor to the desired item using “∧∨＜＞” touch key, then input the number using numeric
input keys.
Press EXEC to write new settings to the NUTRUNNER.
Press QUIT to abort all new edits.
