DISPLAY PANEL MANUAL
8-5
8.2.2 T/T CALIBRATION DATA
The calibration value of the torque transducer (T/T) of the NUTRUNNER is displayed in real time. You are
recommended to use it to confirm the function of T/T, the disconnection of T/T cables, etc.
●T/T CALIBRATION DATA display
The calibration value of the connected NUTRUNNER is displayed. The NUTRUNNER for which a
connection cannot be confirmed is indicated by 「0 (Grey color)」. Numbers from 01 to 32 indicate the
NUTRUNNER No.
Press CURRENT to change the T/T CURRENT DATA display mode.
Press OFFSET to change the T/T OFFSET DATA display mode.
Press EXIT to return to the MAINTENANCE MENU.

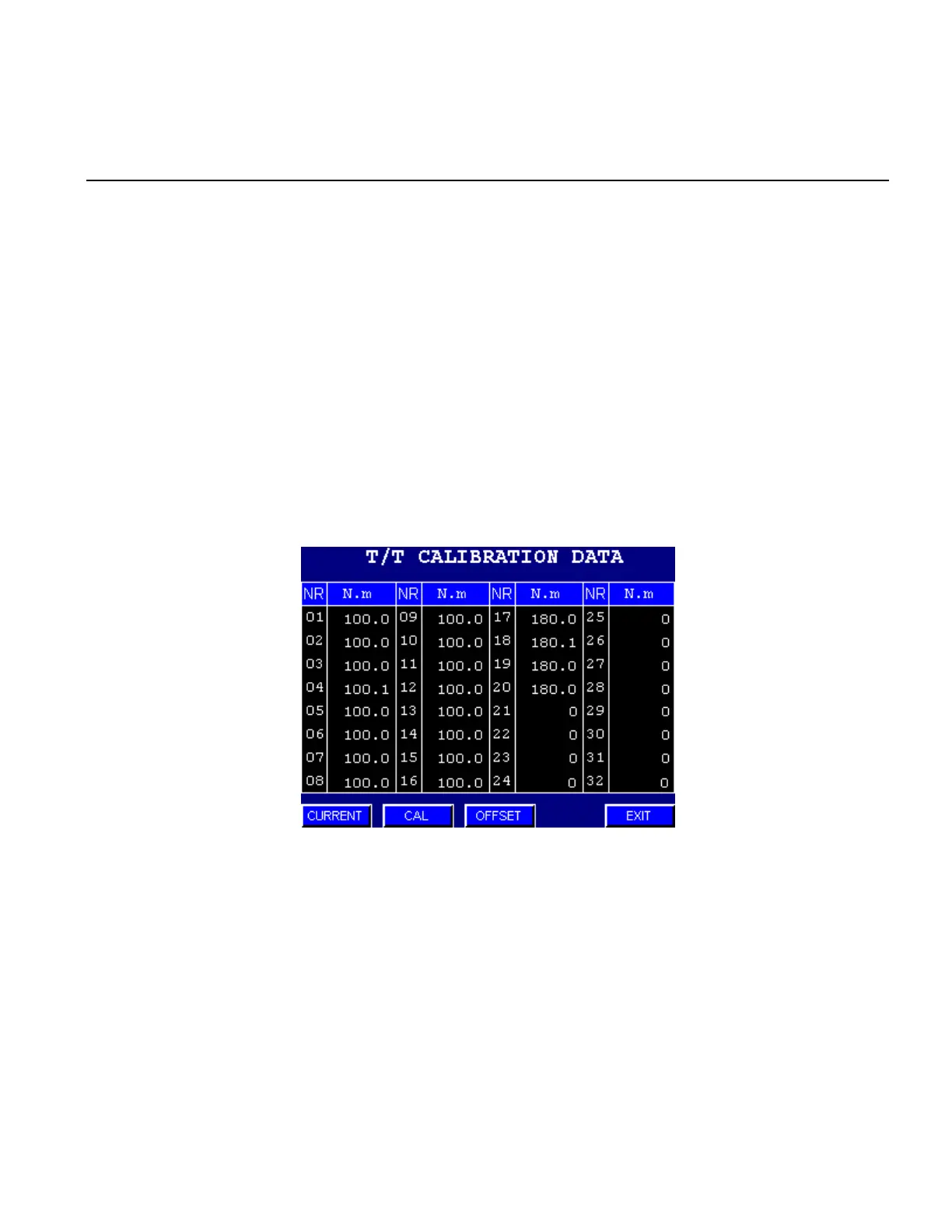

Figure 8.2-2 T/T CALIBRATION DATA
