Sanyo SDNR - Timing Chart

DISPLAY PANEL MANUAL
17-７
17.1.5 Timing Chart

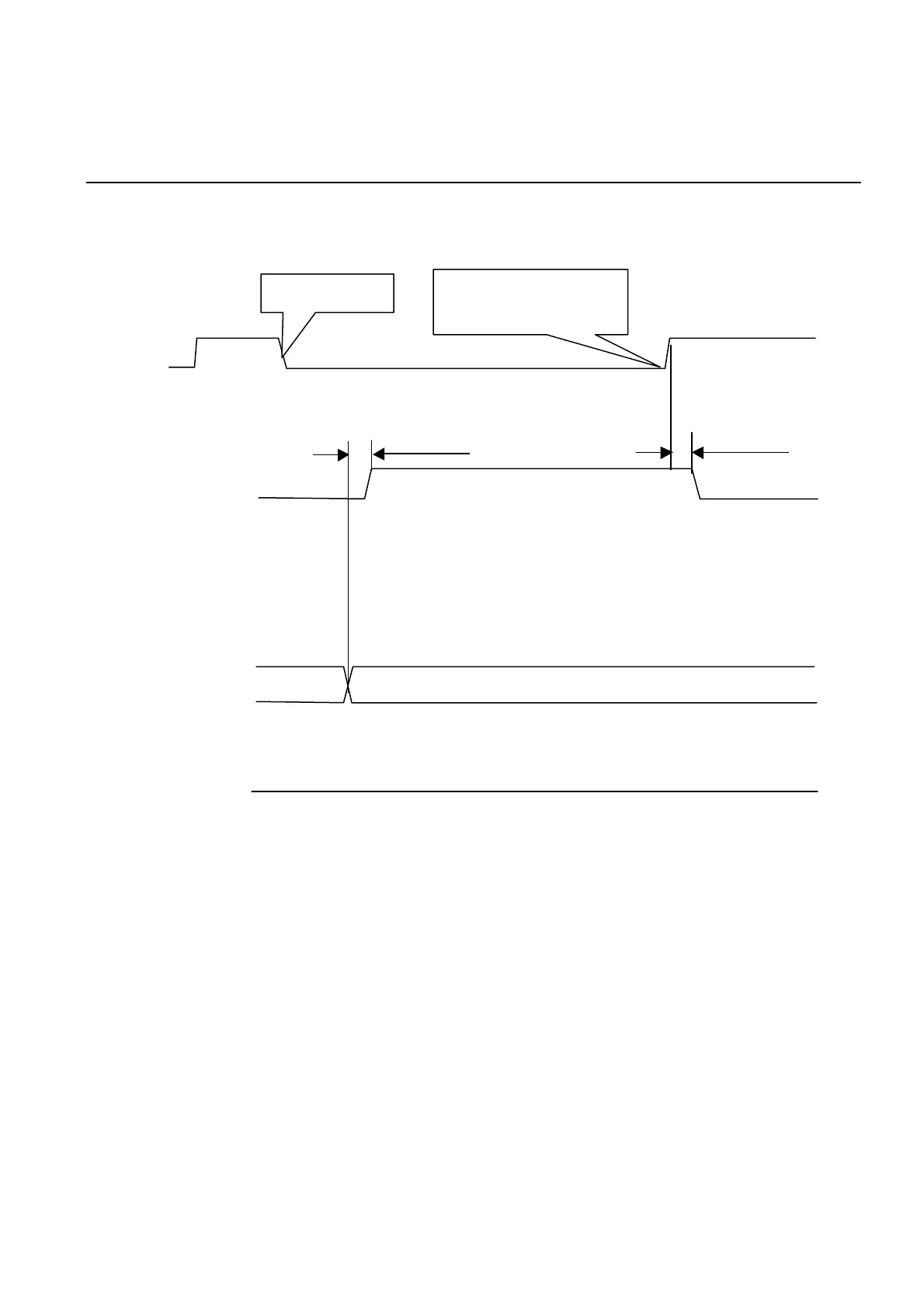

 Timing Chart of NR Data Receive Function is shown as below.
Fastening
Operation
［ Output ］
NR1 - 32, MC
Data Set
IO7:０E0 - 0E2
Fastening Result
Fastening Data
NR1 - 16
NR17 - 32
MC
Data Receive Mode
Online
IO7:0F3 - 0F5

Fastening End
Fastening Start
(Or Reversing Start)
0 msec (min)
10 msec (min)
ON
OFF
ON
OFF
ON
OFF
ON
OFF
