DISPLAY PANEL MANUAL
5-13
5.2.4 DATA OUTPUT ITEM SETTING
The items of DATA output of DRIVER I/O “A - H “ are selected.
●DATA output selection of DRIVER I/O “ ITEM A - H “.
1) Select the DATA OUTPUT SETTING from the SYSTEM SETTING menu. The following screen will be
displayed.

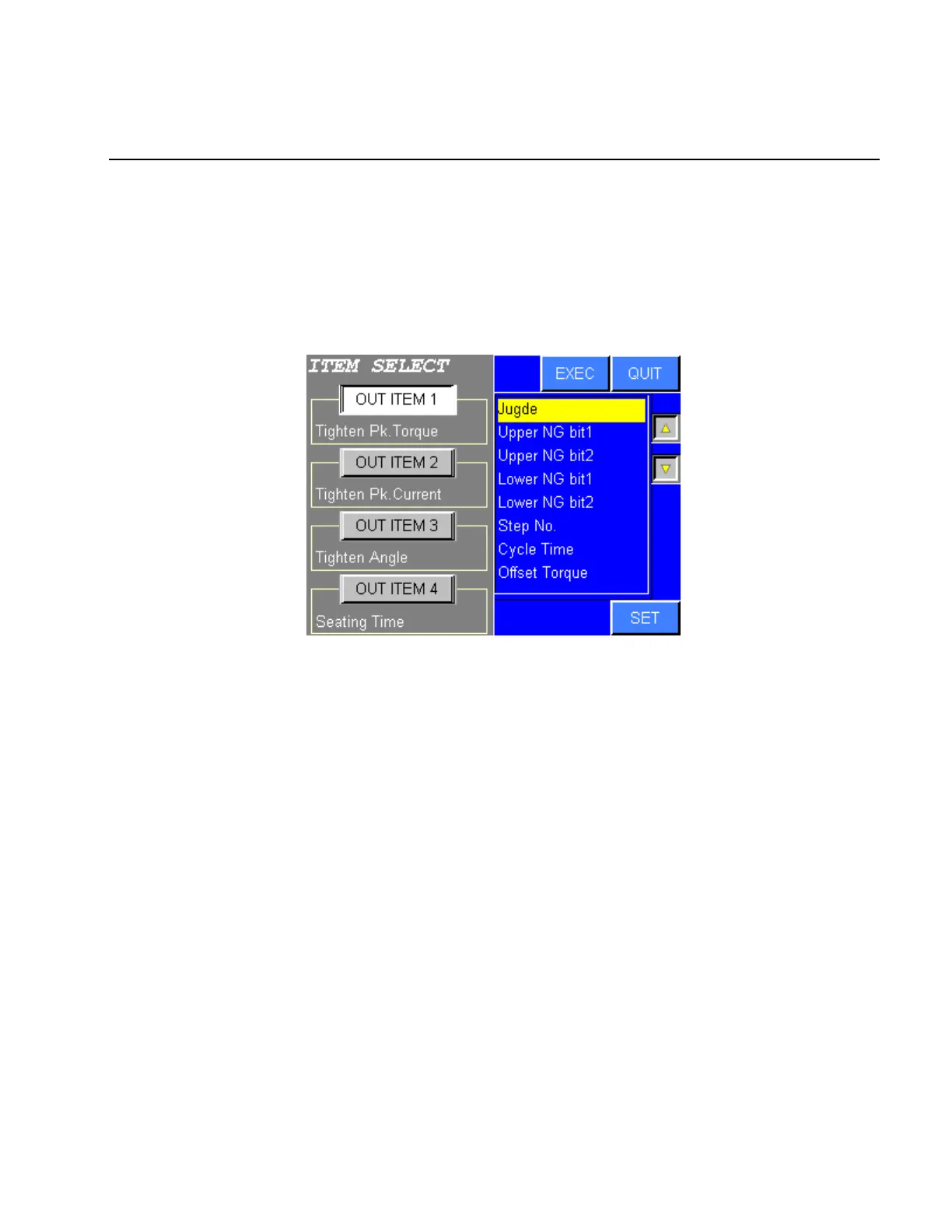

Figure 5.2-8 DATA OUTPUT item setting
2) The cursor is indicated on OUTPUT ITEM 1. Press the OUTPUT ITEM No. to be changed.
3) Move the cursor to the desired item of ITEM SELECT using “△▽“ touch key. Then press SET key.
The selected item will be displayed below the corresponded output item.
4) Press EXEC to write new settings to the NUTRUNNER.
Press QUIT to cancel all new settings and return to the SYSTEM SETTING menu.
