11.2.3 Battery Replacement
Replacement batteries are available from Hakko Electronics.
NAME MODEL MAKER CONTENTS
Battery for
replacement
V7-BT Hakko Electronics
Coin-type lithium primary cell 1 pce.
Cautions sticker 1 pce.
Table 11.2-1 Battery for replacement
Battery should be replaced by every 5 years as a standard.
If the battery voltage drops before five years has elapsed, replace the battery immediately.
When the battery voltage is lowered or not connected, the message “Brownout Battery” “Battery not set” is
displayed.
1) Bottom left of the SYSTEM MAIN menu
2) Top right of the screen No.1 (USER mode first screen at shipping)
3) Bottom left of the screen No.600 (INITIALIZE)
4) Bottom left of the screen No.601 (MAIN MENU of NR mode)
5) Screen No.700 to 707 (DATA DISPLAY mode of NR mode)

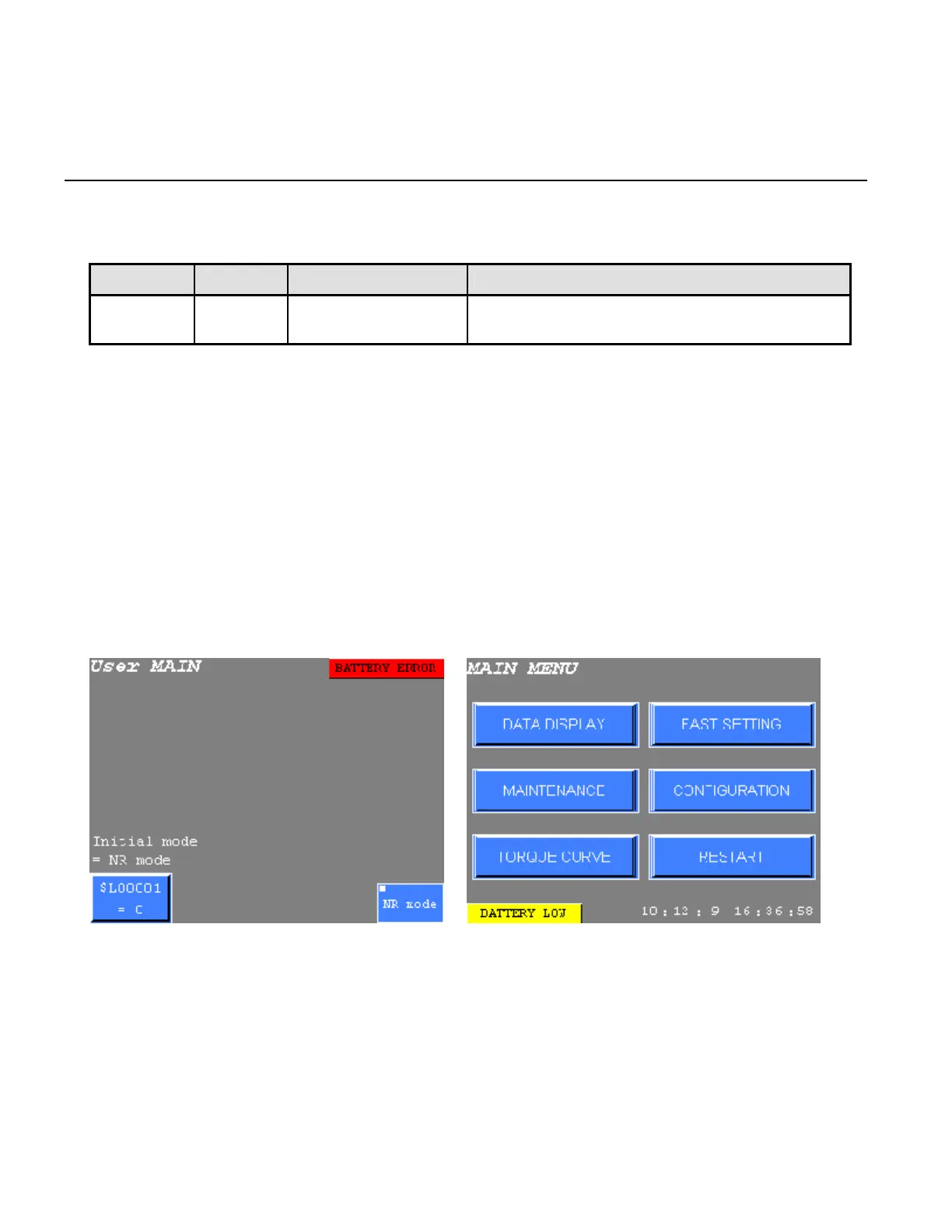

Screen No.1 at shipping Screen No.601 MAIN MENU
Figure 11.2-1 Battery Error display
If above 2) - 5) screens are low frequency of use (USER mode screen is used mainly), make the screen for
informing status of the battery.
The battery status is output to the internal memory $s167 of the TOUCH PANEL.
Refer to ‘Hardware Specifications V806’ ‘Hardware Specifications V8’ for detail.
