5. FASTENING SETTING mode (Type S)
5-38
5.4.1 CONTROL PARAMETER
● CONTROL PARAMETER setting
1) Select the CONTROL PARAMETER from the PARAMETER SETTING menu. The following screen will
be displayed. Input the No. of the NUTRUNNER and the parameter to be set up. The CONTROL
PARAMETER screen will be displayed when EXEC key is pressed. Press QUIT to return to the
PARAMETER SETTING menu.

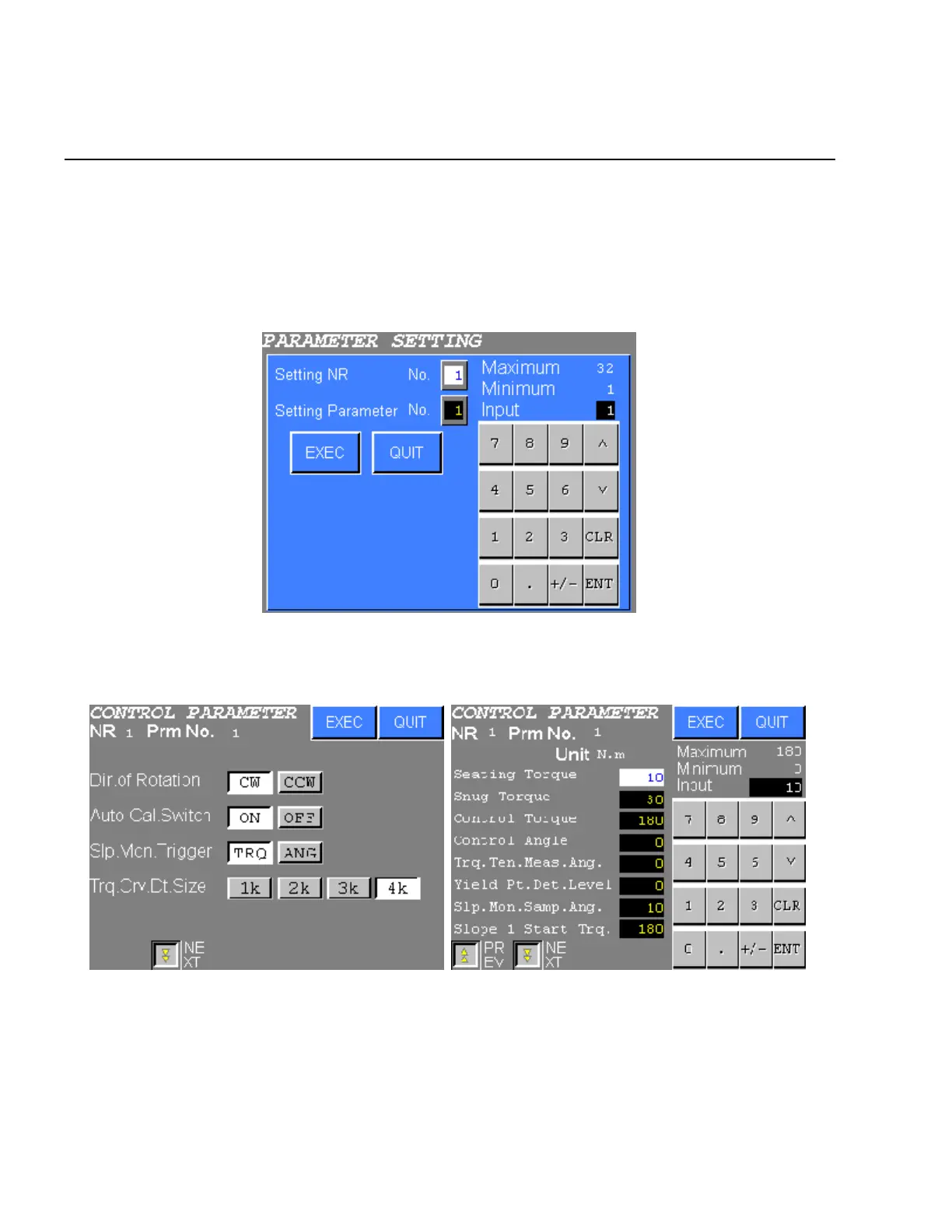

Figure 5.4-2 CONTROL PARAMETER - NR No. ,PARAMETER No. input
2) Following screen will be displayed.
Figure 5.4-3 CONTROL PARAMETER setting
3 ) Press NEXT or PREV to change the page.
Press the switch of the desired setting item to change the item of Dir.of Rotation to Trq.Crv.Dt.Size.
Move the cursor to the desired item using “∧∨“ touch key. Then input the number using numeric input
keys.
Press EXEC to write new settings to NUTRUNNER.
Press QUIT to abort all edits and return to the PARAMETER SETTING menu.
