3. Handling and configuration
3-4
3.1.3 Installation method of the DISPLAY PANEL
The DISPLAY PANEL shall be installed from the front of the enclosure as described below.
1) Cut the installation hole on the panel surface. Provide 50 mm of surrounding space for ventilation
and future maintenance. Insert the DISPLAY PANEL into the hole from the front of the panel (Max.
thick : 5mm).

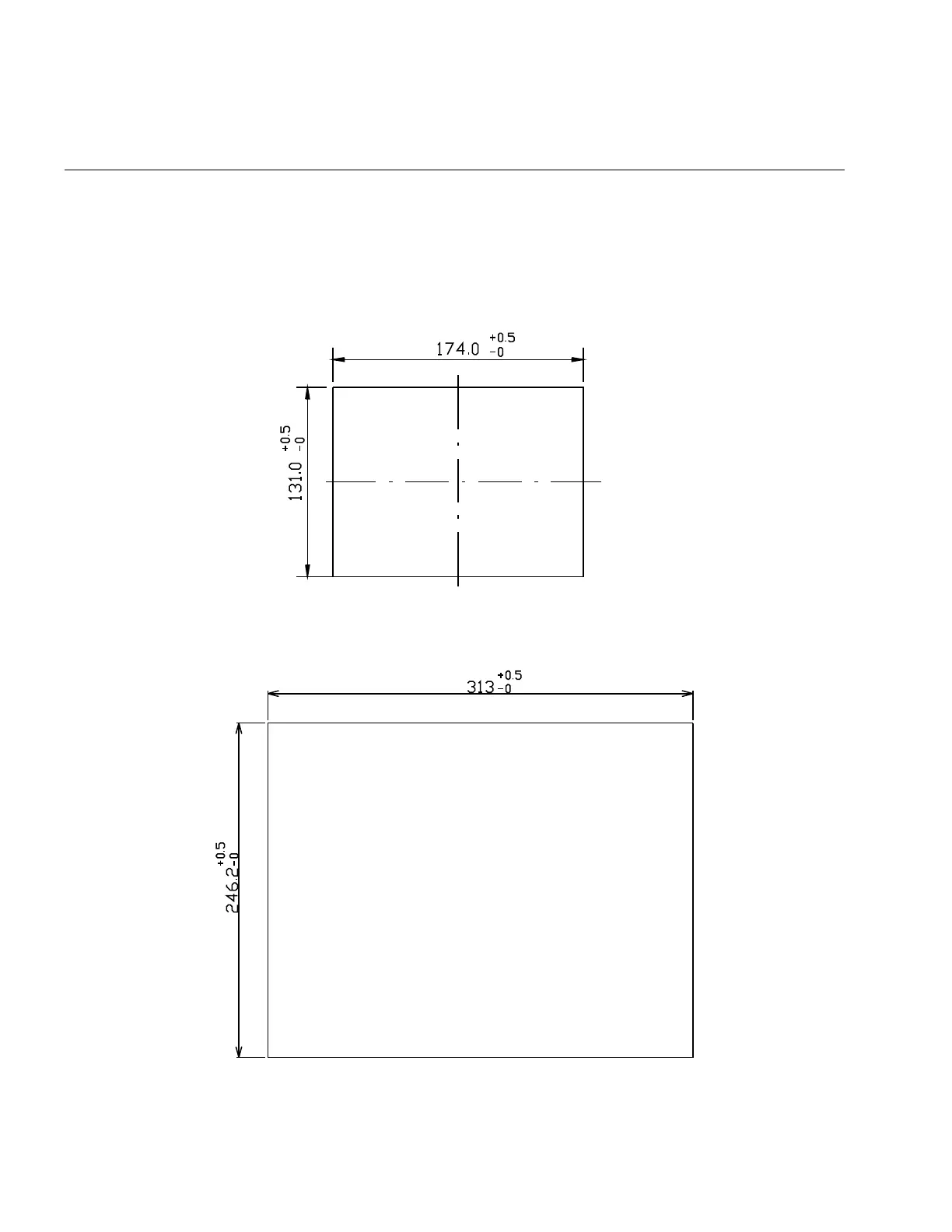

Figure 3.1-1 Mounting hole dimensions SDN-DP06
Figure 3.1-2 Mounting hole dimensions SDN-DP12
