5.2.3 MONITOR ITEM SETTING
The output item of the driver monitor terminal, the output gain, and the output offset are set with the MONITOR
ITEM SETTING. The gain and offset shall be used with the default value. When the SPINDLE SETTING is
completed, the value of the monitor item setting is written to the default value.
●Monitor item setting
1) Select the MONITOR ITEM SETTING from the SYSTEM SETTING menu. The following screen will be
displayed. Input the No. of the NUTRUNNER and press EXEC. Press QUIT key to cancel and return to
the SYSTEM SETTING menu.

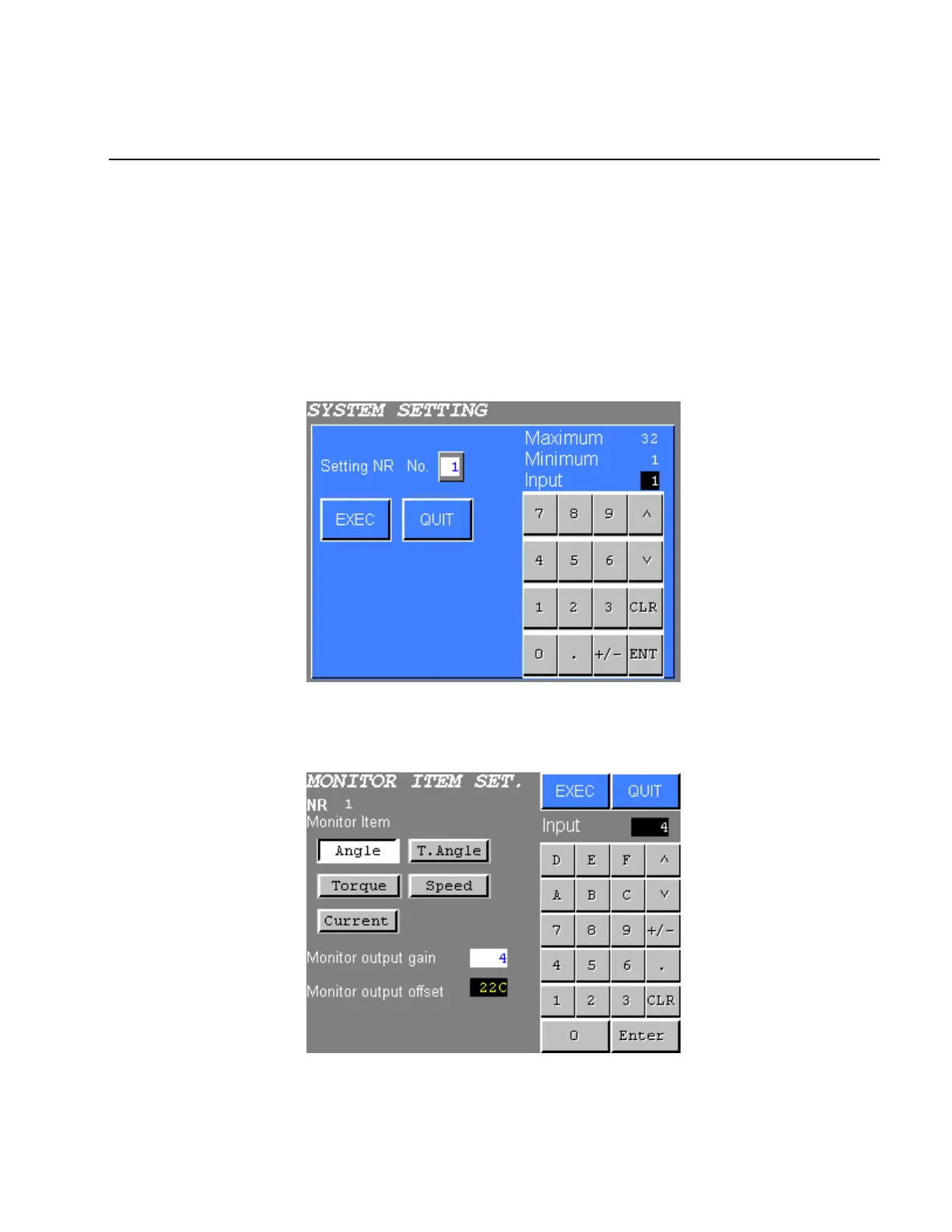

Figure 5.2-6 MONITOR ITEM SETTING
2) Press the desired item switch to change the monitor item. Move the cursor to the desired item using “ ∧
∨“ touch keys for others. Then input the number using numeric input keys.
Figure 5.2-7 MONITOR ITEM SETTING
3) Press EXEC to write new settings to the NUTRUNNER.
Press QUIT to cancel all new settings and return to the SYSTEM SETTING menu.
