8.5.4 MC OUTPUT CHECK(Type M)
The user can confirm the output signals of the MULTI-CONTROLLER on the MC OUTPUT CHECK mode.
●MC OUTPUT CHECK
1) Select the MC OUTPUT CHECK from the I/O CHECK menu. The following screen will be displayed.

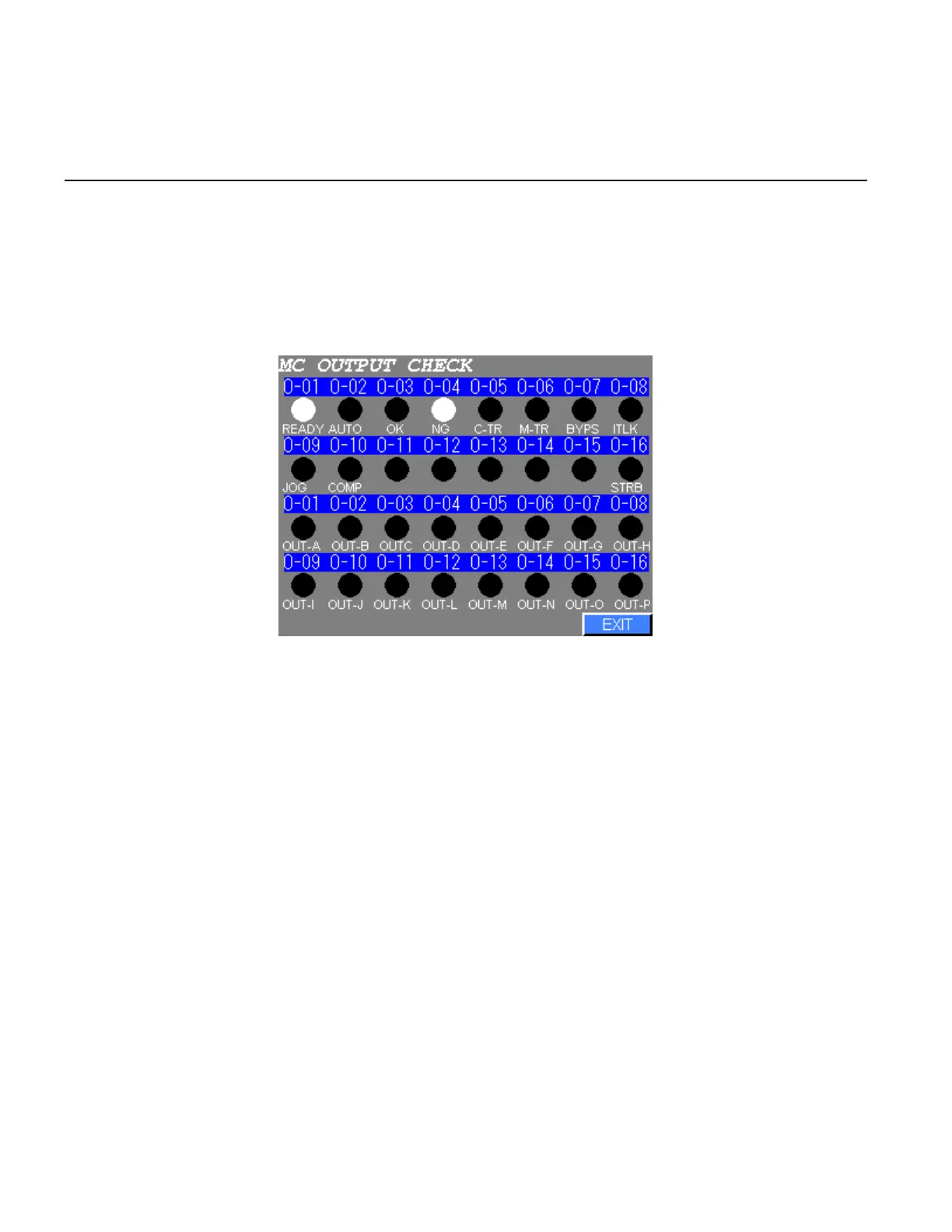

Figure 8.5-5 MC OUTPUT CHECK
2) The lamps of which input signals are ON will illuminate turn on the lights.
The lamps of which input signals are OFF will illuminate turn off the lights.
3) The output signals will be ON imitatively by pressing on ●.
The output signals will be OFF imitatively by pressing on ○.
4) Press EXIT to return to the I/O CHECK menu.
