8. MAINTENANCE mode
8-12
8.5.2 DR OUTPUT CHECK
The user can confirm the output signals of the DRIVER on the DR OUTPUT CHECK mode.
●DR OUTPUT CHECK
1) Select the DR OUTPUT CHECK from the I/O CHECK menu. The following screen will be displayed.

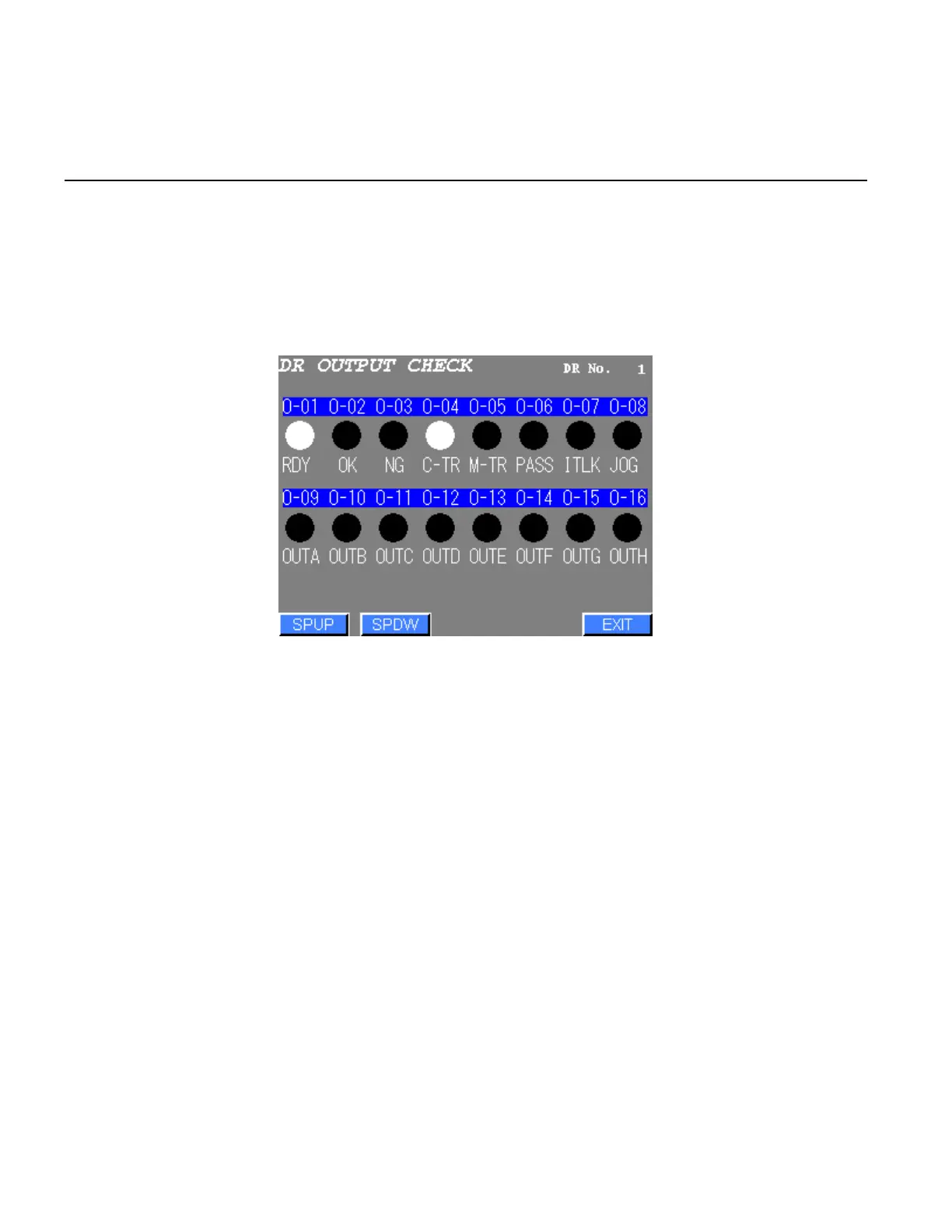

Figure 8.5-3 DR OUTPUT CHECK
2) The spindle to be displayed can be selected by [SPUP][SPDW] touch keys.
3) The lamps of which input signals are ON will turn on the lights.
The lamps of which input signals are OFF will turn off the lights.
4) The output signals will be ON imitatively by pressing on ●.
The output signals will be OFF imitatively by pressing on ○.
5) Press EXIT to return to the I/O CHECK menu.
To Next Page
