3.2.5 Connecting the DISPLAY PANEL
The connection cables shall be used for the connection of the RS485 connector of the DISPLAY PANEL to
that of MULTI CONTROLLER or DRIVER as shown in the following diagram.
The modular connector plug of the RS485 cables shall be pushed in till it is securely in place.
Insert this plug to the connector labeled ARCNET for a DISPLAY PANEL side.

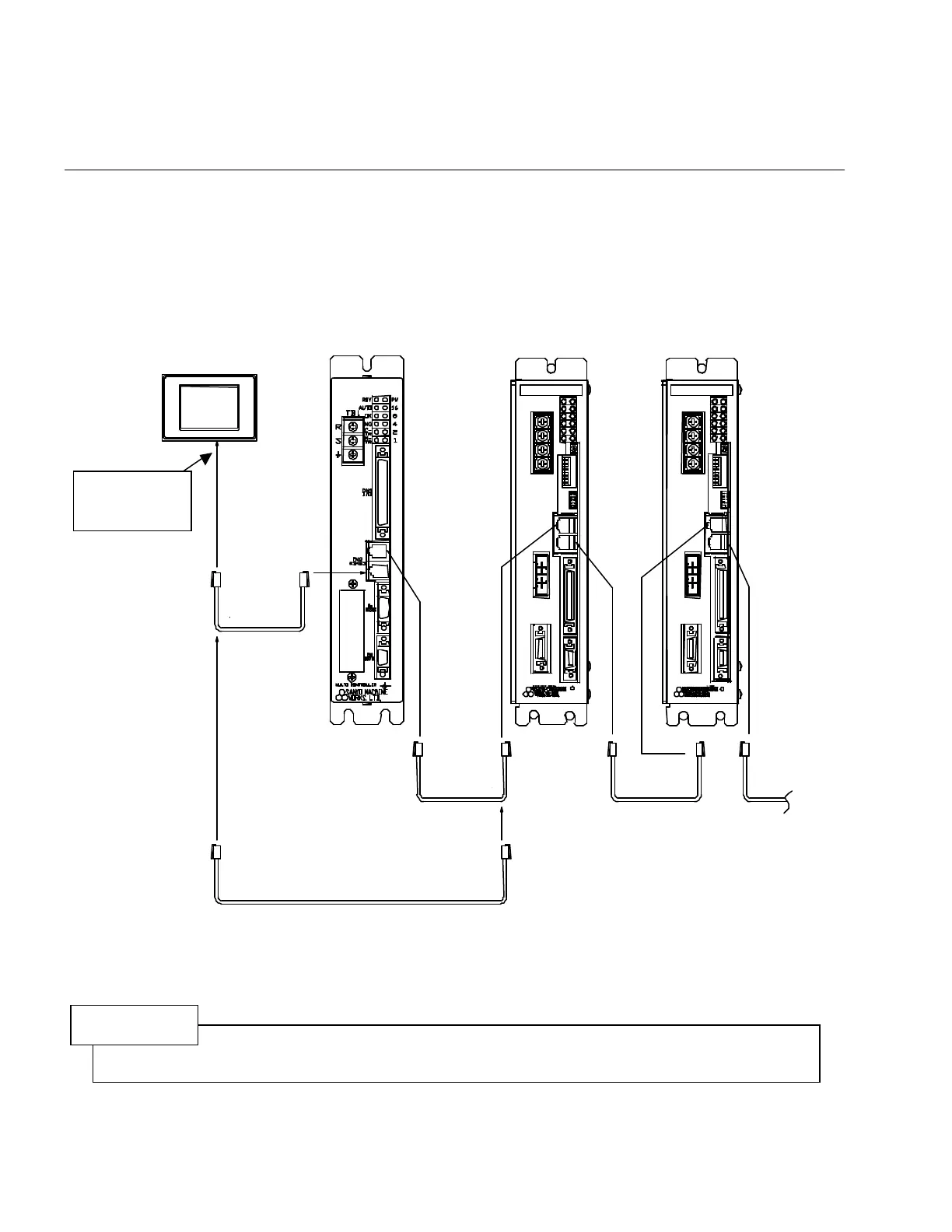

Figure 3.2-4 RS485 cable connection
NOTE
RS485 cable may be connected to either of two RS485 connectors of the MULTI CONTROLLER,
DRIVER and DISPLAY PANEL.
DISPLAY PANEL MULTICONTROLLER DRIVER 1
DRIVER 2
Case of type M
Case of type S
Case of type M
To ARCNET
