5. FASTENING SETTING mode (Type S)
5-40
5.4.3 TROUBLE PARAMETER
● TROUBLE PARAMETER setting
1) Select the TROUBLE PARAMETER from the PARAMETER SETTING menu. The following screen will
be displayed. Input the No. of the NUTRUNNER and the parameter to be set up. The TROUBLE
PARAMETER screen will be displayed when EXEC key is pressed. Press QUIT to return to the
PARAMETER SETTING menu.

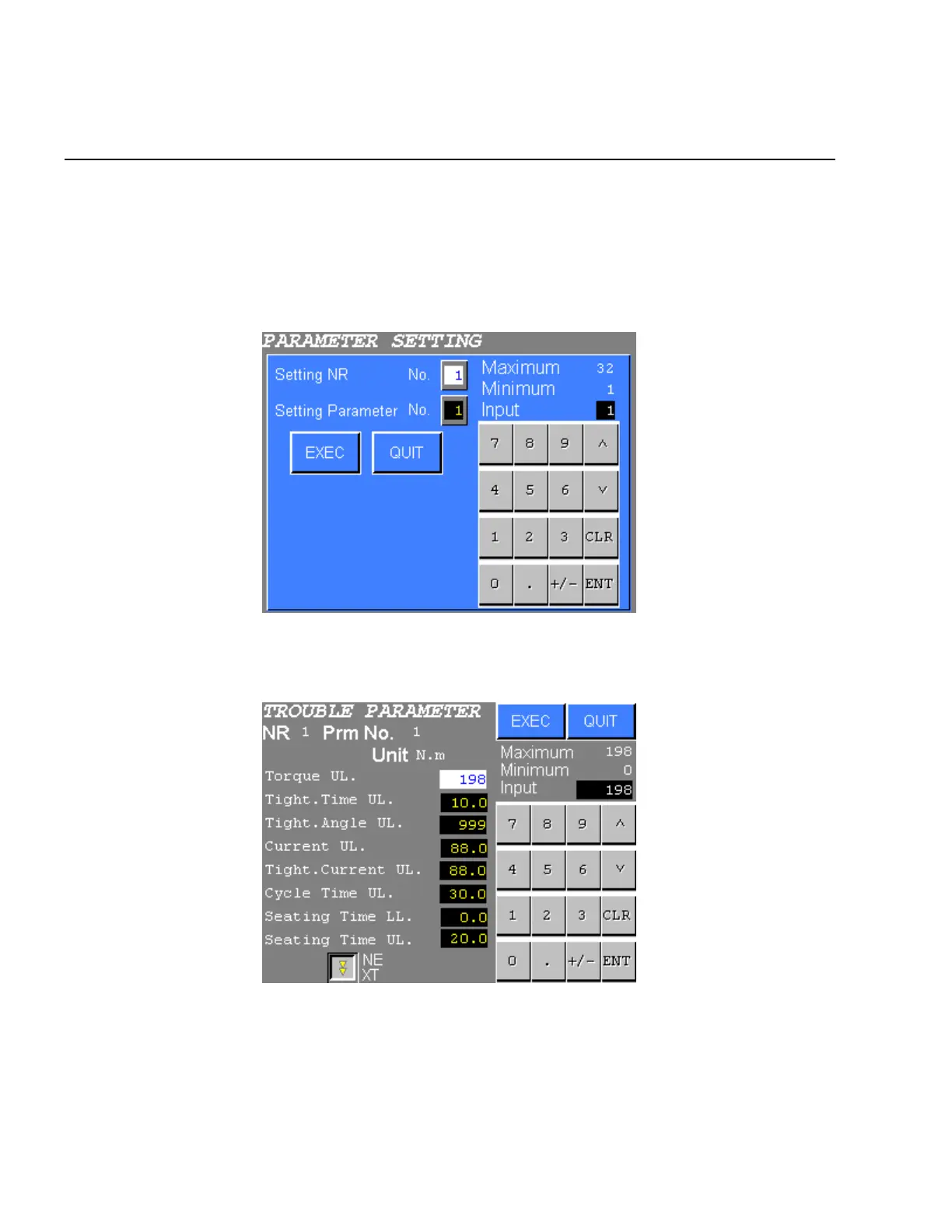

Figure 5.4-6 TROUBLE PARAMETER - NR. No., parameter No. input
2) Following screen will be displayed.
Figure 5.4-7 TROUBLE PARAMETER setting
3 ) Press NEXT or PREV to change the page.
Move the cursor to the desired item using “ ∧∨“ touch key. Then input the number using numeric input
keys.
Press EXEC to write new settings to NUTRUNNER.
Press QUIT to abort all edits and return to the PARAMETER SETTING menu.
