2) Insert the metal fittings into four places over and under the body. Then fasten with attached
screws.
The DISPLAY PANEL may become damaged if the screws are over-tightened.
Fasten the screw with 0.5 to 0.7 Nm (5 to 7 kgf.cm).

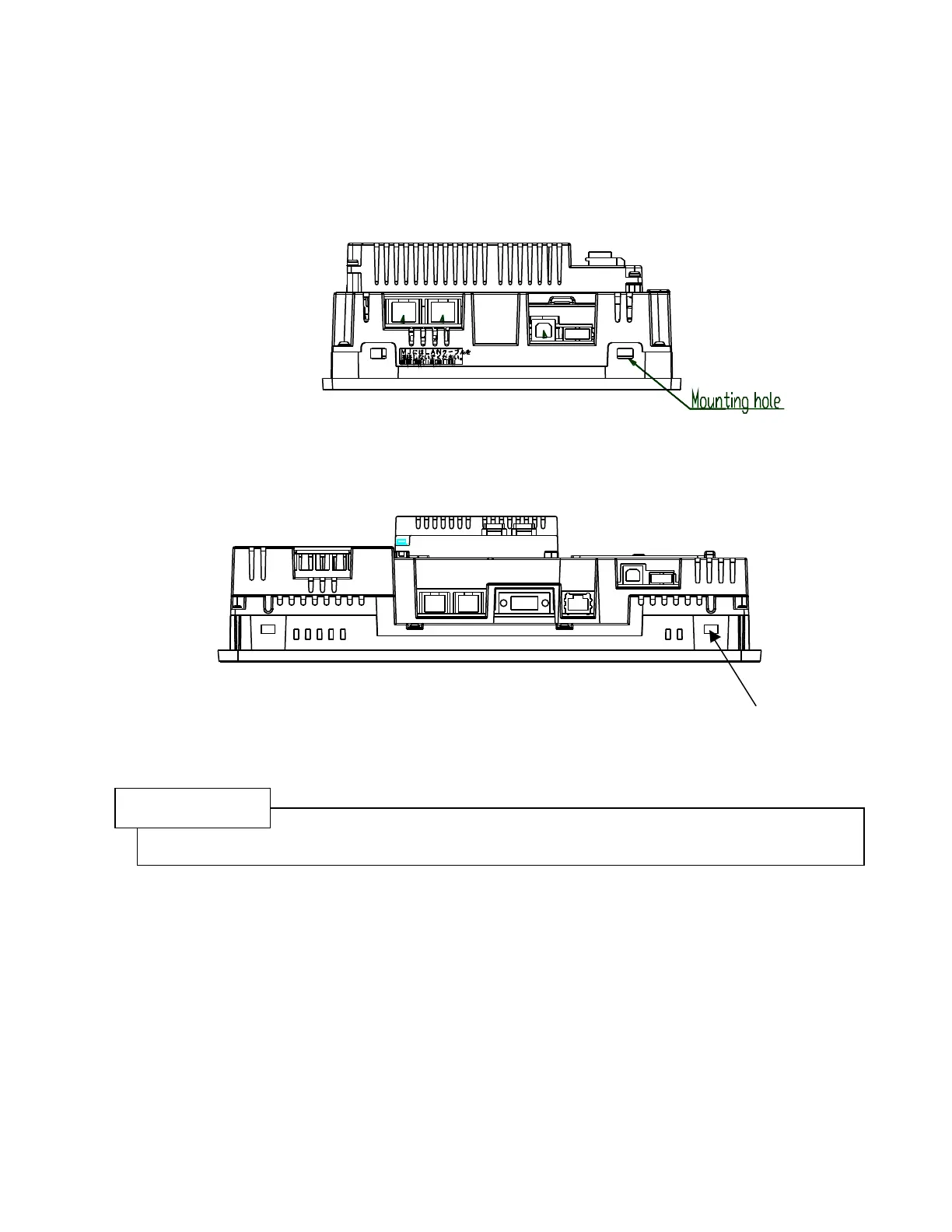

Figure 3.1-3 Location of the metal fittings SDN-DP06
Figure 3.1-4 Location of the metal fittings SDN-DP12
CAUTION
1. Do not install the DISPLAY PANEL near strong electric or electromagnetic fields.
2. No other than the provided screw shall be used.
Mounting hole
