7. DATA DISPLAY mode
7-8
●32 SPINDLES DISPLAY MODE
Type S Type M

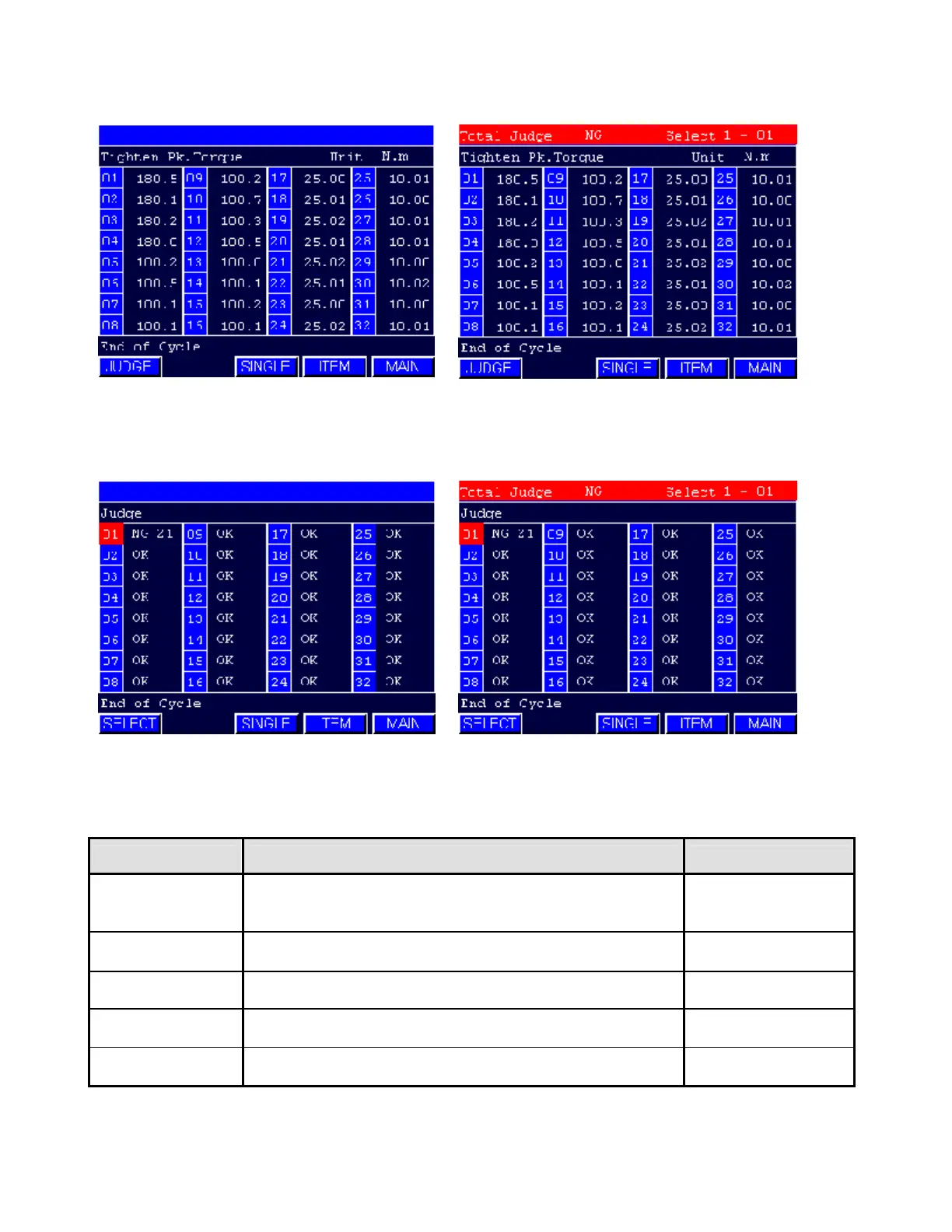

Figure 7.4-5 MULTIPLE DISPLAY MODE (32 SPINDLES)
The NR Judgment or display item 1 mode can be selected by JUDGMENT/SELECTION key switch.
Type S Type M
Figure 7.4-6 MULTIPLE DISPLAY MODE (32 SPINDLES)
The following data will be indicated at the MULTIPLE DISPLAY mode.
ITEM CONTENTS MODE
GENERAL
JUDGMENT
(Type M only)
The end of cycle status for all spindles is displayed and the
judgment result is indicated by the MULTI CONTROLLER
status lamp.
ALL MODE
NR JUDGMENT
The end of cycle status for single spindle is displayed and
the result is indicated by DRIVER status lamp.
2 SPINDLES MODE
4 SPINDLES MODE
SELECT
The program No. (left) and parameter No. (right) are
displayed at the start or at the end of fastening operation.
2 SPINDLES MODE
DISPLAY DATA 1
The data selected as the DISPLAY ITEM 1 is displayed.
(Refer to the Figure7.5-1).
ALL MODE
DISPLAY DATA 2
The data selected as the DISPLAY ITEM 2 is displayed.
(Refer to the Figure7.5-1).
SPINDLES MODE
Table 7.4-1 Display data of MULTIPLE DATA display mode
To Next Page
