DISPLAY PANEL MANUAL
15-3
●SPINDLE SETTING
For the following specifications:
Number of DRIVERS: 6
DRIVER No.1 … SDNS-DR1-025 DRIVER No.5 … SDNS-DR2-100
DRIVER No.2 … SDNS-DR1-025 DRIVER No.6 … SDNS-DR2-100
DRIVER No.3 … SDNS-DR1-025 DRIVER No.7 … no connection
DRIVER No.4 … SDNS-DR2-100 DRIVER No.8 … no connection

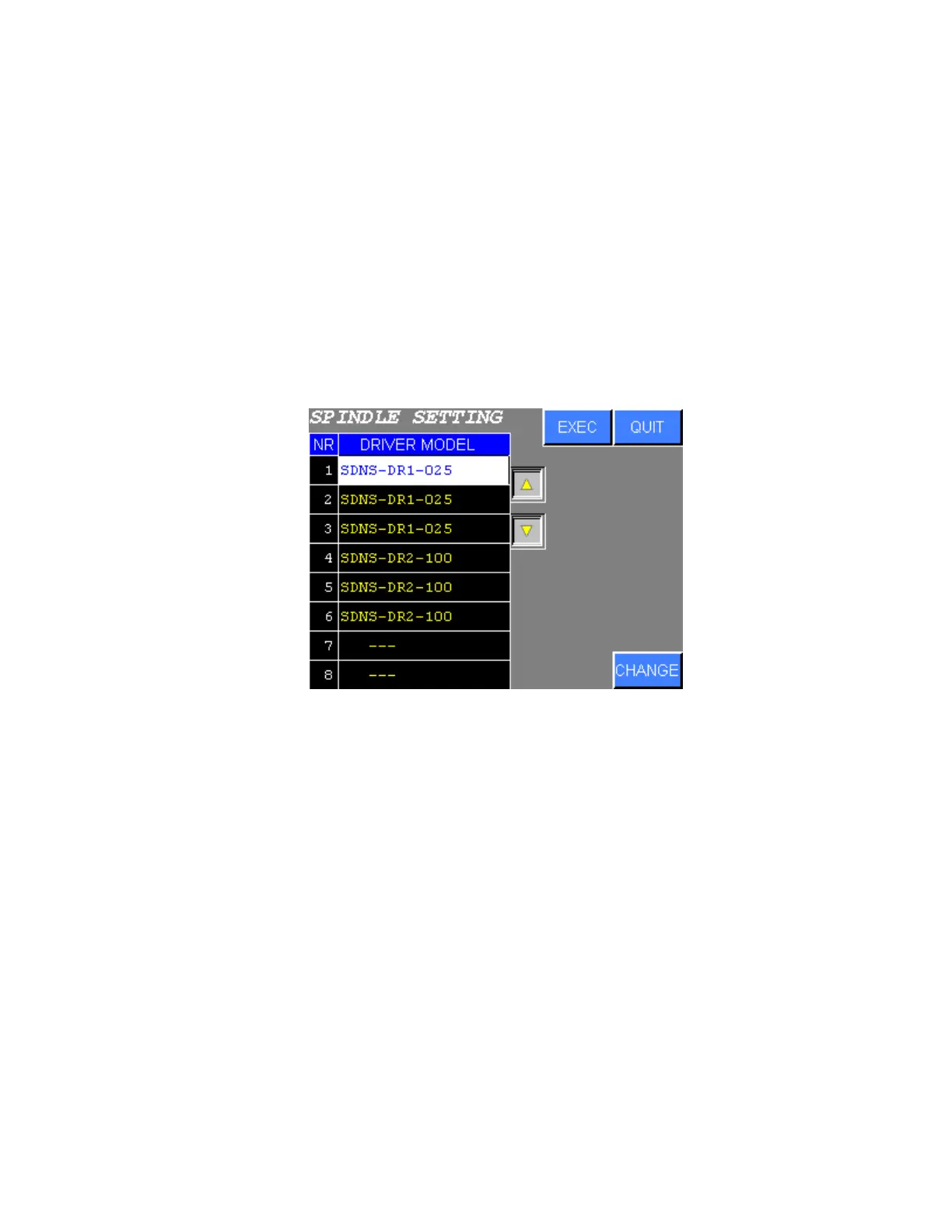

Figure 15.1-1 SPINDLE SETTING
