R.6.51
Date Code 20111215 Reference Manual SEL-421 Relay
DNP3 Communications
DNP LAN/WAN Application Example
To meet the requirement for SOE-quality timestamps, enter all binary inputs
into the SER report. See Figure 6.4 for a screenshot of the process.

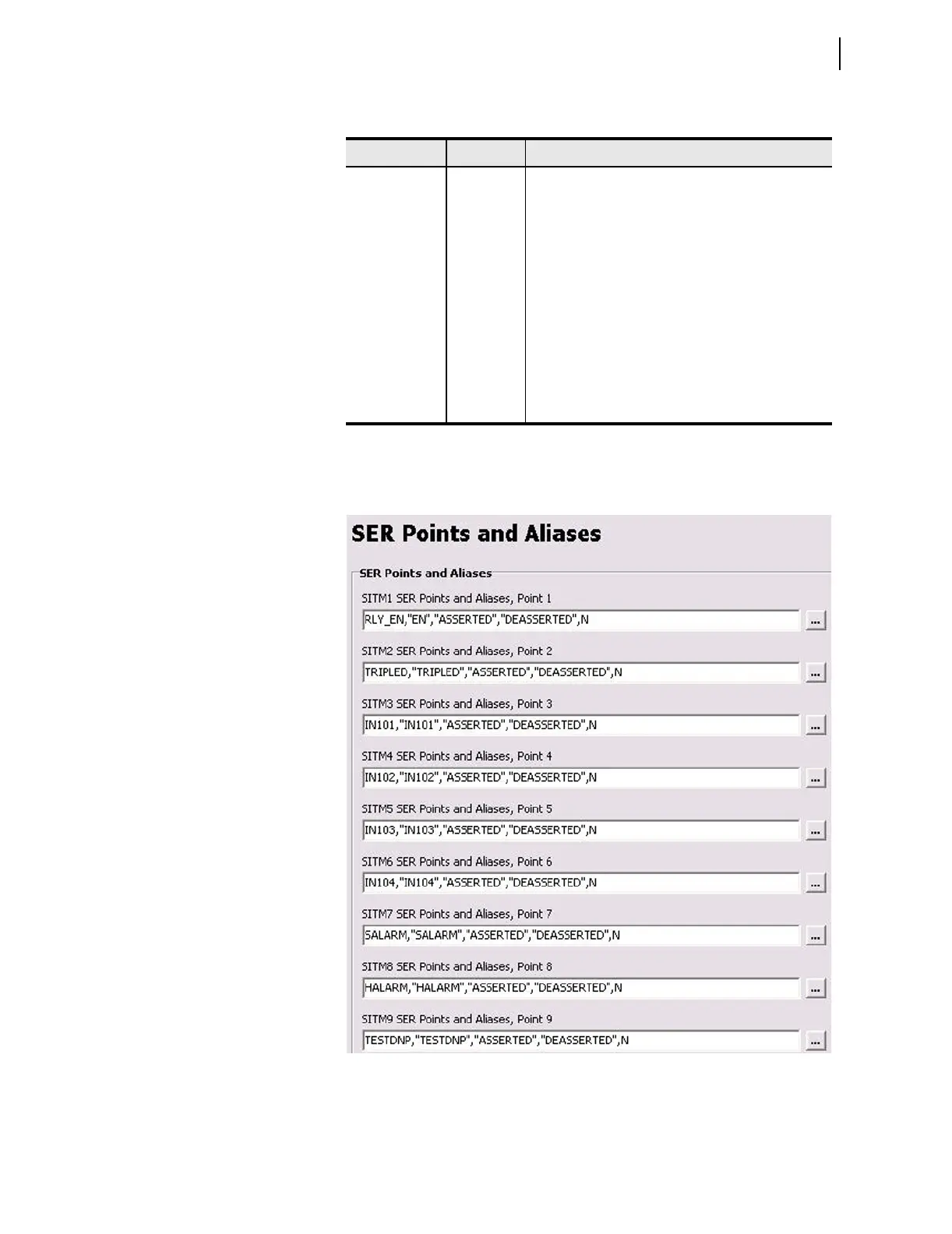

Figure 6.4 Add Binary Inputs to SER Point List
Pass the Binary Input states and timestamps to the DNP master by mapping
the SER points from the STATE region, as demonstrated in Table 6.28.
URETRY 3
a
3 Max Retry Attempts per Unsolicited Message
UTIMEO 60
a
60 sec for Unsolicited Message Offline Timeout
RPADR01 12 DNP3 Address for Master 1 is 12
DNPIP01 192.9.0.1 IP Address for Master 1 (www.xxx.yyy.zzz)
DNPTR01 TCP Transport Protocol for Master 1 (UDP, TCP)
DNPUP01 20000
a
UDP Response Port Number for Master 1
UNSL01 N Disable Unsolicited Reporting for Master 1
PUNSL01 N Disable Unsolicited Reporting at Powerup for Master 1
DNPMP01 1 CUSTOM Mode: DNP3 map associated with Master 1
(Map 1)
DNPCL01 Y Enable Controls for Master 1
a
Default value
Table 6.27 DNP LAN/WAN Application Example Protocol Settings
(Sheet 2 of 2)
Setting Name Setting Description
