System description
SIMOCODE pro
GWA 4NEB 631 6050-22 DS 03
1-51

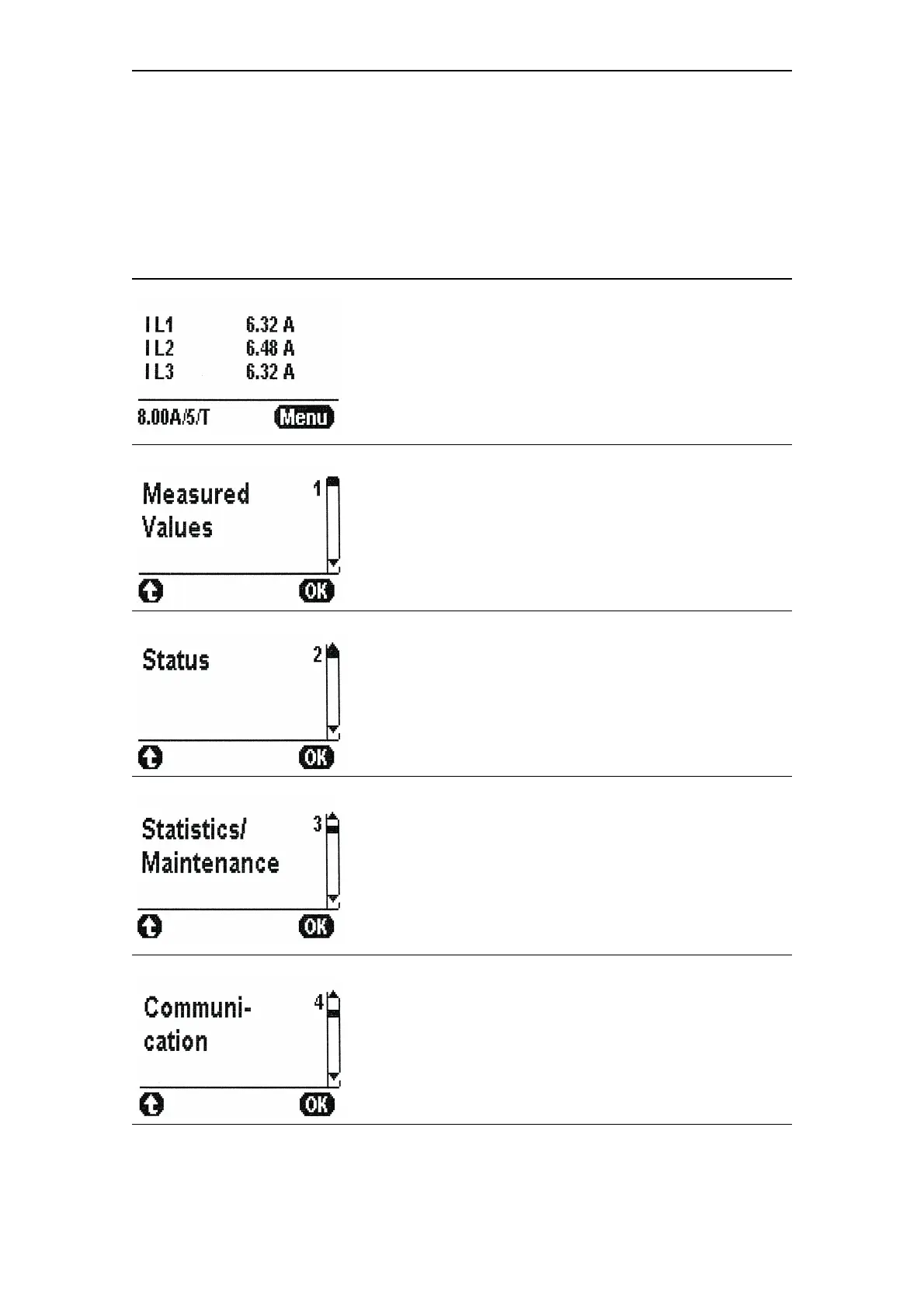

Displays of the operator panel with display
Navigation is possible by means of the arrow buttons and softkeys. Each
menu item may have one or more submenus. The menu structure and
display are, in part, directly dependent upon device parameterization (e.g.
selected control function) and hardware configuration (e.g. type and number
of expansion modules used).
Main display The "Main display" is the default SIMOCODE pro display. It displays
the current measured values, which can be selected via predefined
profiles according to user requirements.
For detailed information, see: "Read and adapt main display").
Measured values display The "Measured Values Display" provides an overview of all values
measured by SIMOCODE pro.
For example, all phase currents, phase voltages, power-related
measured values or temperatures. For detailed information, see
"Display of measured values in the measured values display".
Status display The "Status Display" shows all higher-level status information, i.e.
all status information relevant to protecting and controlling the
motor.
For detailed information, see: "Motor protection and motor control
status".
Statistics/Maintenance The "Statistics/Maintenance" menu item provides an overview of all
SIMOCODE pro information that is primarily relevant to
maintenance.
For detailed information, see: "Display of statistical and
maintenance-relevant information on the statistics/maintenance
display".
Communication The "Communication" menu item displays all important information
concerning PROFIBUS communication.
For detailed information, see: "Status display for PROFIBUS
communication".
Table 1-9: Menu of the operator panel with display and menu navigation
