Siemens SIMOCODE pro System Manual

System description
SIMOCODE pro
1-52 GWA 4NEB 631 6050-22 DS 03

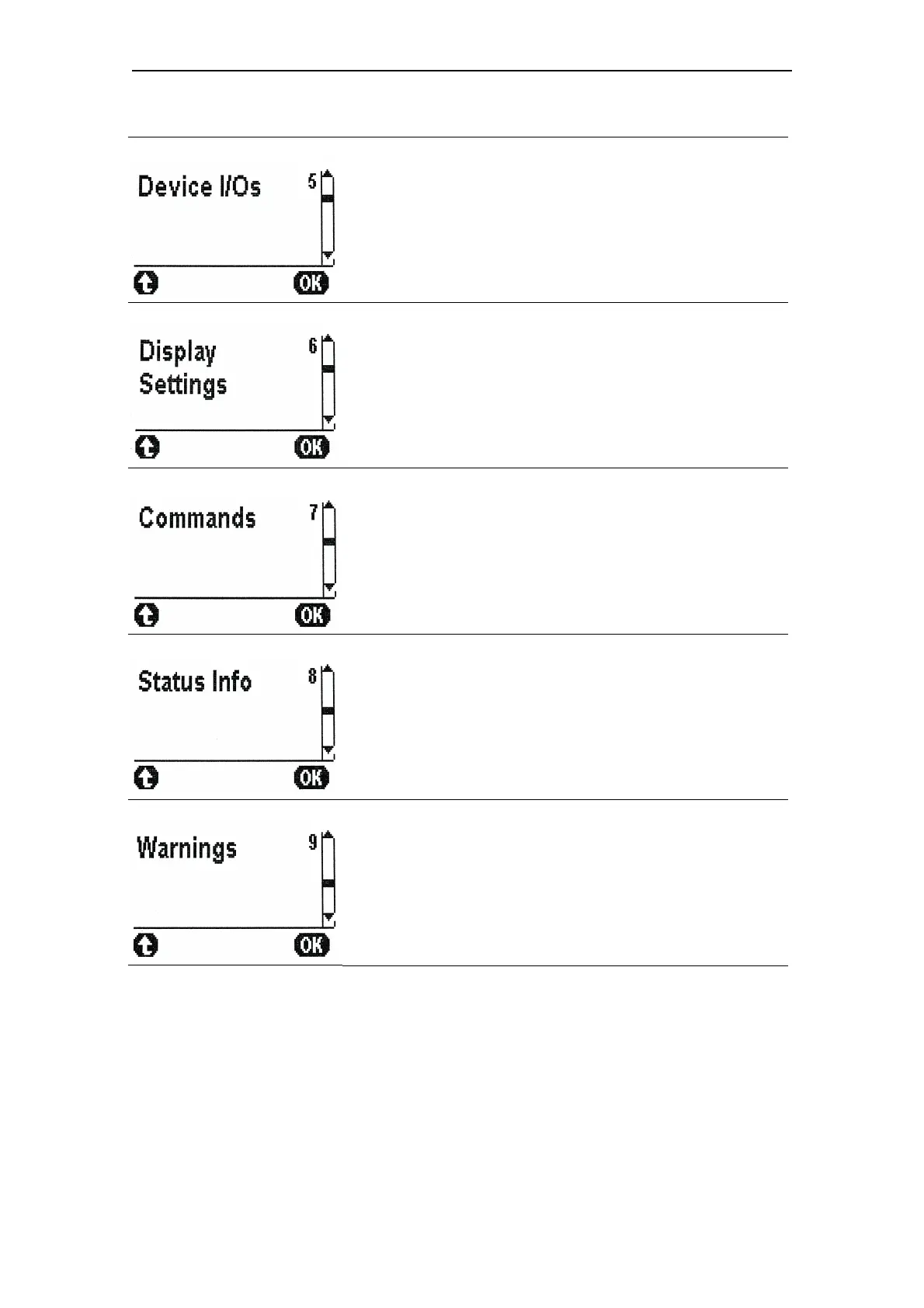

Device I/Os The "Device I/Os" menu item provides a complete overview of the
current status of all inputs and outputs of the basic unit as well as
any connected expansion modules.
For detailed information, see: "Displays the current status of all
device I/Os".
Display settings All settings relevant to the operator panel with display can be
carried out via "Display Settings". In addition to selecting the
language and adjusting the contrast or illumination, it is also
possible to select the profiles here which are relevant for adjusting
the main display.
For detailed information, see: "Adapt display settings".
Commands The "Commands" menu item contains all commands relating to
SIMOCODE pro e.g. for testing the feeder, resetting after tripping
and/or adopting parameters into the memory module or into
SIMOCODE pro.
For detailed information, see "Resetting, testing and parameterizing
via commands".
Status information The "Status Information" menu item provides an overview of all
pending status information.
For detailed information, see "Display of all pending status
information".
Warnings The "Warnings" menu item provides an overview of all pending
warnings.
For detailed information: See "Display of all pending warnings".
Table 1-9: Menu of the operator panel with display and menu navigation (Cont.)

Siemens SIMOCODE pro Specifications

General

Protection Class	IP20
Mounting Type	DIN rail mounting
Rated Operational Voltage	24 V DC
Rated Current	Up to 820 A
Protection Functions	Overload, short-circuit, phase failure, asymmetry, ground fault, motor stall
Operating Temperature Range	-25°C to +60°C
Communication Protocols	PROFIBUS DP, PROFINET, Modbus RTU
Analog Outputs	Up to 2
Temperature Monitoring	PTC/KTY, RTD (PT100/PT1000)
Digital Outputs	Relay outputs, Solid-state outputs
Analog Inputs	0/4-20mA, PT100/PT1000
