A.7 Application examples
Inverter with CU230P-2 Control Units
Operating Instructions, 11/2013, FW V4.6.6, A5E02430659B AG
433
6. Assign a name for your PROFINET network.
7. Exit this screen form and the next one with OK.
8. Select your subnet.

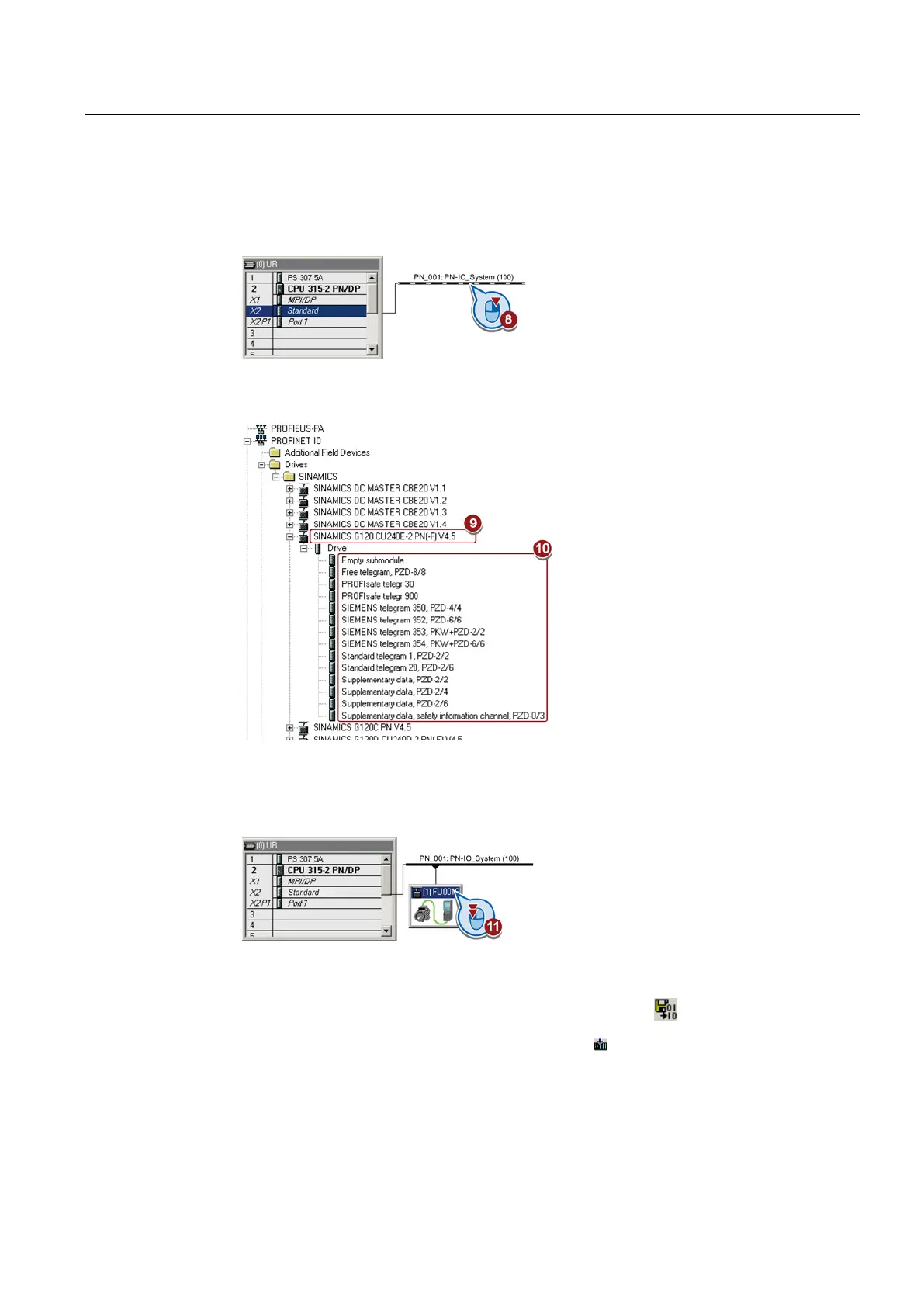

9. Using the hardware catalog, first insert the inverter using drag & drop.
10.Insert the communication telegram.
11.Open the properties window of the inverter and enter a unique and descriptive device
name for the inverter.
Using the device name, the PROFINET controller assigns the IP address when starting
up.
12.You will also find the proposed IP address in this screen form. If required, you can
change the IP address via "Properties".
13.Save your hardware configuration with "Save and compile" (
).
14.Load the configuration into the control unit via the
button.
