3 Overviews
Operating devices and display elem
ents

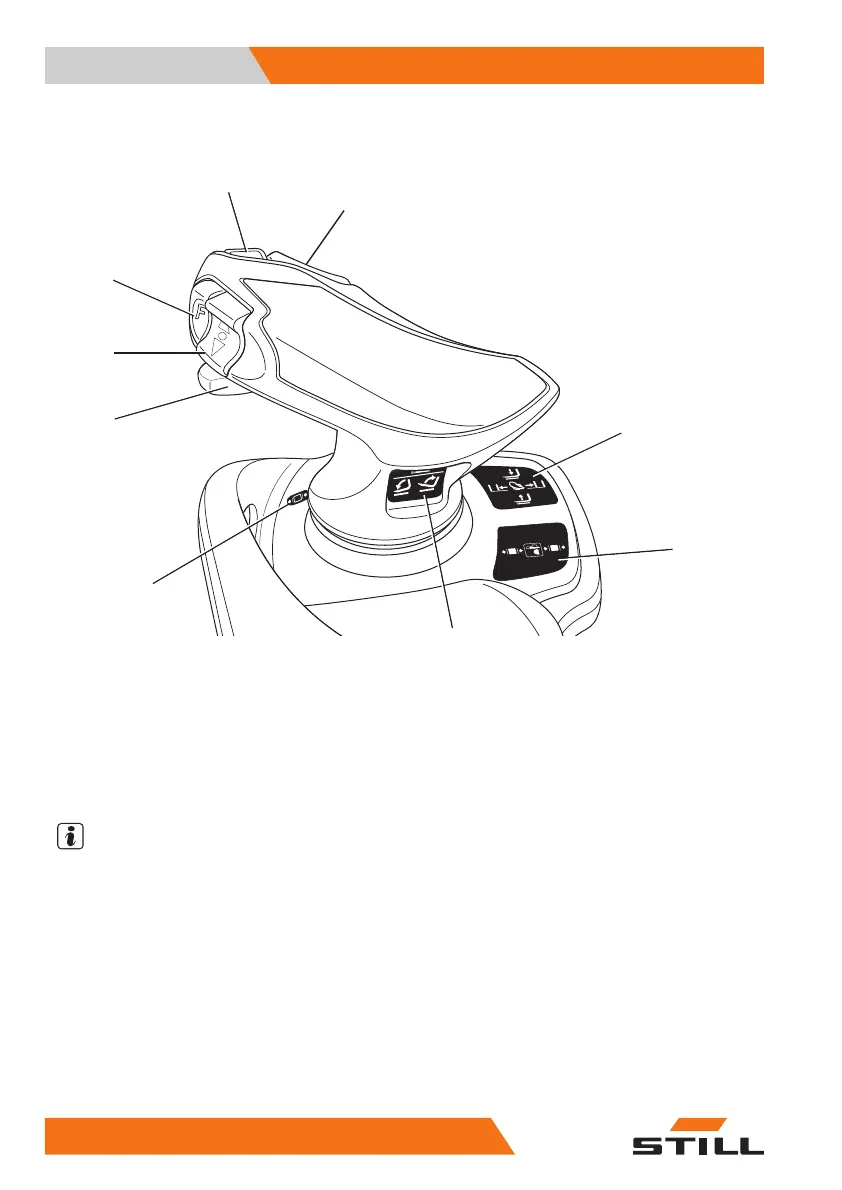

Joystick 4Plus
+
F
1
2
3
4
5
9
8
7
6
1 Horizontal rocker button for the "3rd and
4th hydraulic function": tilting the lift mast
2 Pictograms for the hydraulic functions:
lifting, lowering and sideshift
3 Pictograms for the 5th hydraulic function and
for the clamp locking mechanism (variant)
4 Pictograms for the 3rd and 4th hydraulic
function
5 LED for the "clamp release" (variant)
6 Slider for the "4th hydraulic function"
7 Vertical rocker button for the "drive direction"
8Shiftkey"F"
9 Signal horn button
NOTE
The a
uthorised service centre can assign
diff
erent functions to the shift key "F", e.g.
swit
chover of the control axles for actuation of
the 5
th hydraulic function.
86 5
6368011531 EN - 06/2019 - 02
