4 Operation
Attachments
Picto-
gram
Attachment function
Rotate to the left
Rotate to the right
Tip shovel over
Tip shovel back
NOTE
The pictograms are affixed according to
the attachment fitted at the factory. If an
attachment with different functions is fitted,
the authorised service centre must check that
the pictograms bear the correct representation
and must change them if necessary.
– For actuation of the clamp locking mecha-
nism, see the section entitled "Clamp lock-
ing mechanism (variant)".
6219_003-050_V3

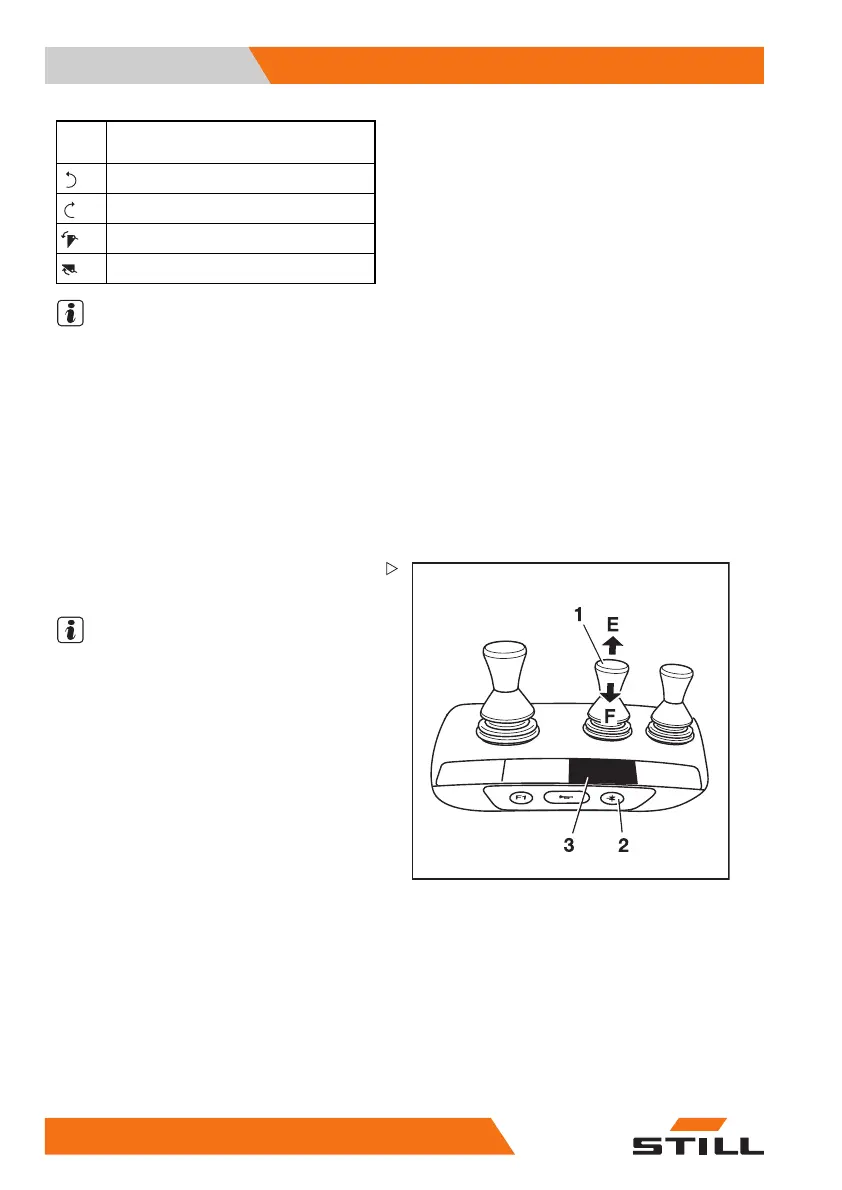

Controlling attachments using the
triple mini-lever and the 5th function
NOTE
For technical reasons, clamping attachments
must not be controlled via the "5th function".
Thefunctionkeyf
or the "5th function" (2) and
the operating le
ver (1) are used to control the
"5th function".
The adhesive label bearing the pictograms
for the hydraulic functions (3) is affixed at the
designated point.
– If the adhesive label becomes illegible or
is missing, please contact your authorised
service centre.
– Observe the picto
grams for the attachment
functions on the a
dhesive label (3).
The pictograms on the operating lever show
the respective functions that are activated by
this lever.
The following applies:
– Actuate the funct
ion key for the "5th func-
tion" (2).
240
56368011531 EN - 06/2019 - 02
