4 Operation
Lifting

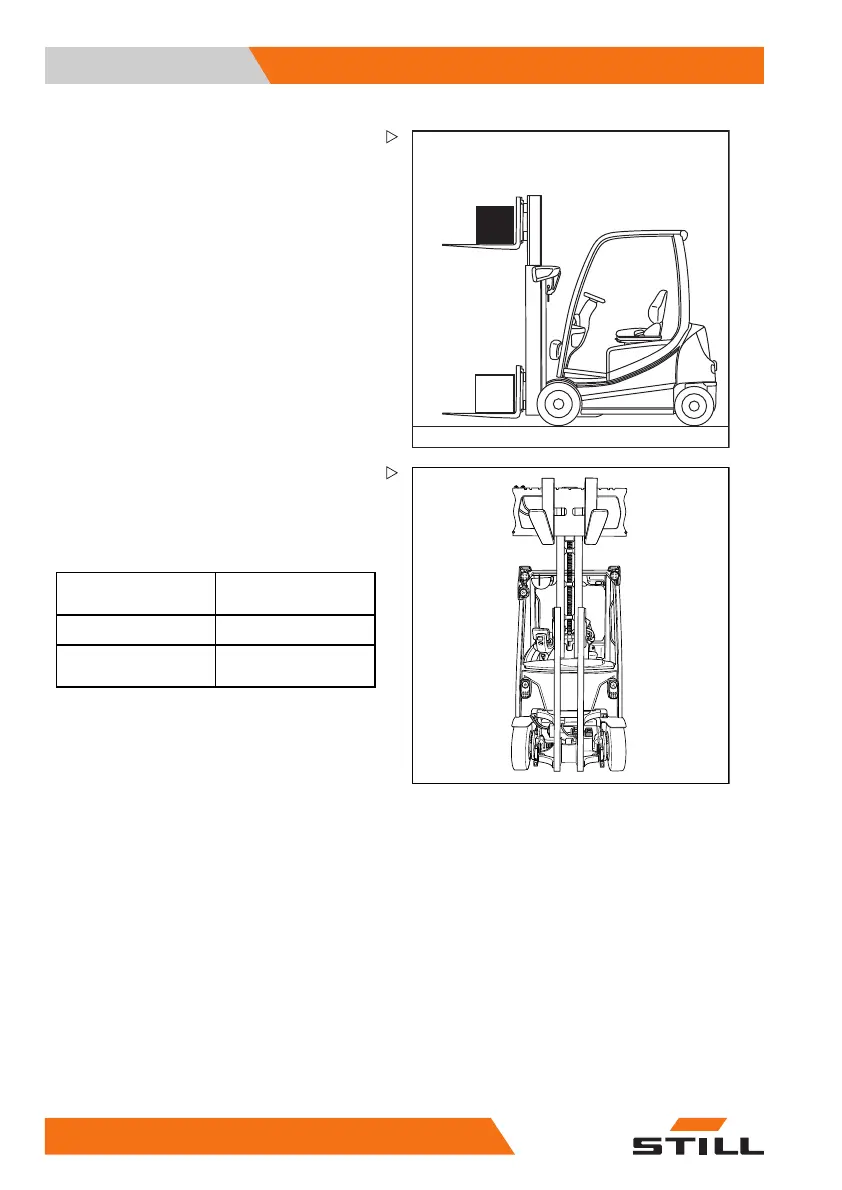

Mono lift mast "Easy-View"
When lifting, the inner lift mast rises above the
outer lift cylinders. The lift mast takes the fork
carriage with it via a chain. In this scenario,
the fork carriage rises at twice the speed of the
inner lift mast.
6219_003-226
This lift mast has a
low,narrowdesigntomake
it easier to handle
pallets. The driver has an
unobstructed view
pasttheliftmasttotheleft
and right, and can a
lso see over the lift mast.
Data
Height: lift mast
retracted (h
1
)
1650 mm
Height: lift (h
3
)
2137 mm
Rated capacity: load
(Q)
2000 kg
.
Operating devices for the lifting
system
The method of operating the lifting system
depends on the operating devices included in
the truck's equipment.
Possible equipment variants include:
•Mu
lti-lever
• Double mini-lever
• Triple mini-lever
• Quadr
uple mini-lever
