Operation 4
Attachments
E
F
E
F
1 2 3 4
6
5
6219_003-204_V2

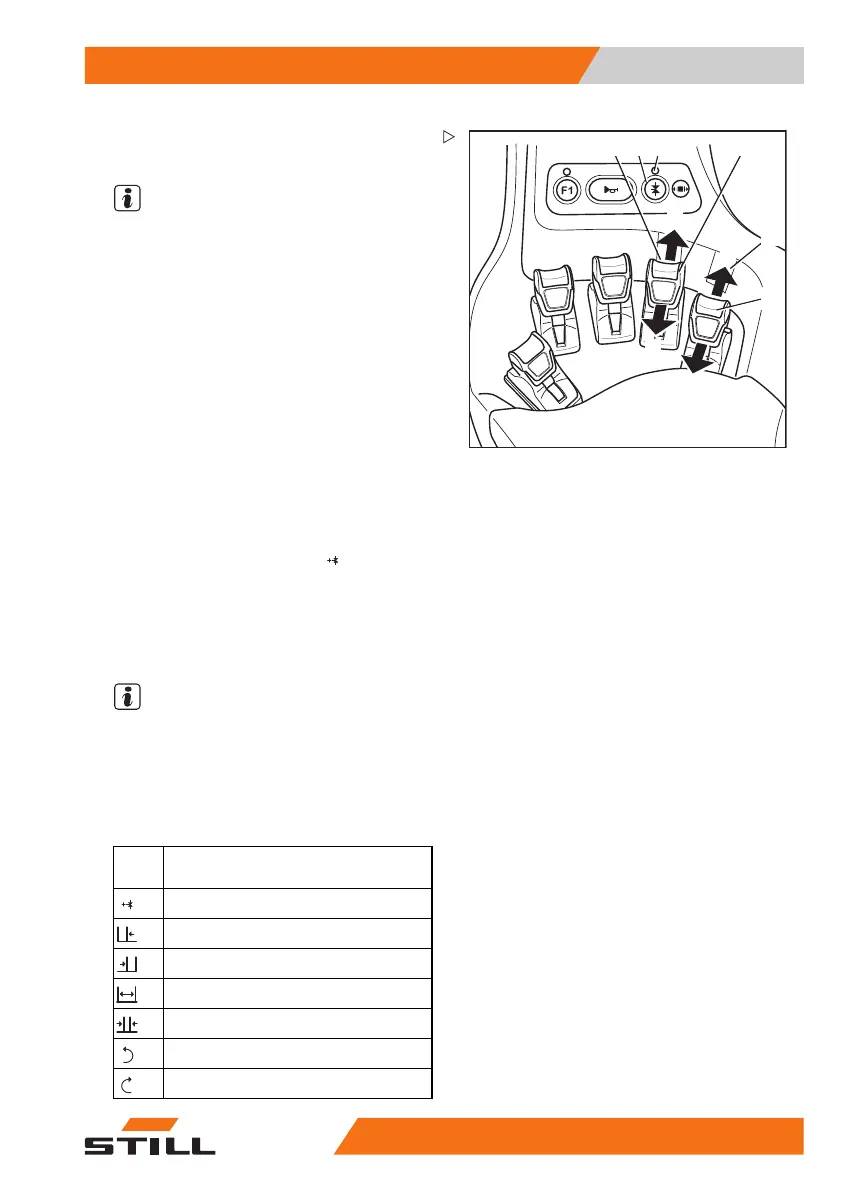

Controlling attachments wit
h Finger-
tip and the 5th function
NOTE
For technical reasons, clamping attachments
must not be controlled via the 5th function.
The function key for the "5th function" (2) and
the operating levers (1, 6) are used to control
the "5th function".
The pictograms (1, 5) behind the operating
levers show the functions that are activated by
the respective levers.
– If the adhesive labels become illegible or
are missing, please contact your authorised
service centre.
The following applies:
– Actuate the function key for the "5th func-
tion" (2).
The LED for the "5th function"
(3) lights up.
– Move the operating lever (4) or (6) in the
direction of the arrow (E) or (F).
The attachment moves accordingly in the
directions (E) or (F) as shown in the pictogram.
NOTE
The place where the adhesive label bearing
the pictograms (1) or (5) is affixed shows
which operating lever is intended to operate
the "5th function". The pictograms show the
functions that are activated by switching with
the function key (2).
Picto-
gram
Attachment function
Auxiliary hyd
raulics "5th function"
Move the sideshift to the left
Move sideshi
ft to the right
Adjust fork
arms: open
Adjust fork
arms: close
Rotate to the left
Rotate to the right
563
68011531 EN - 06/2019 - 02 247
