Operation 4

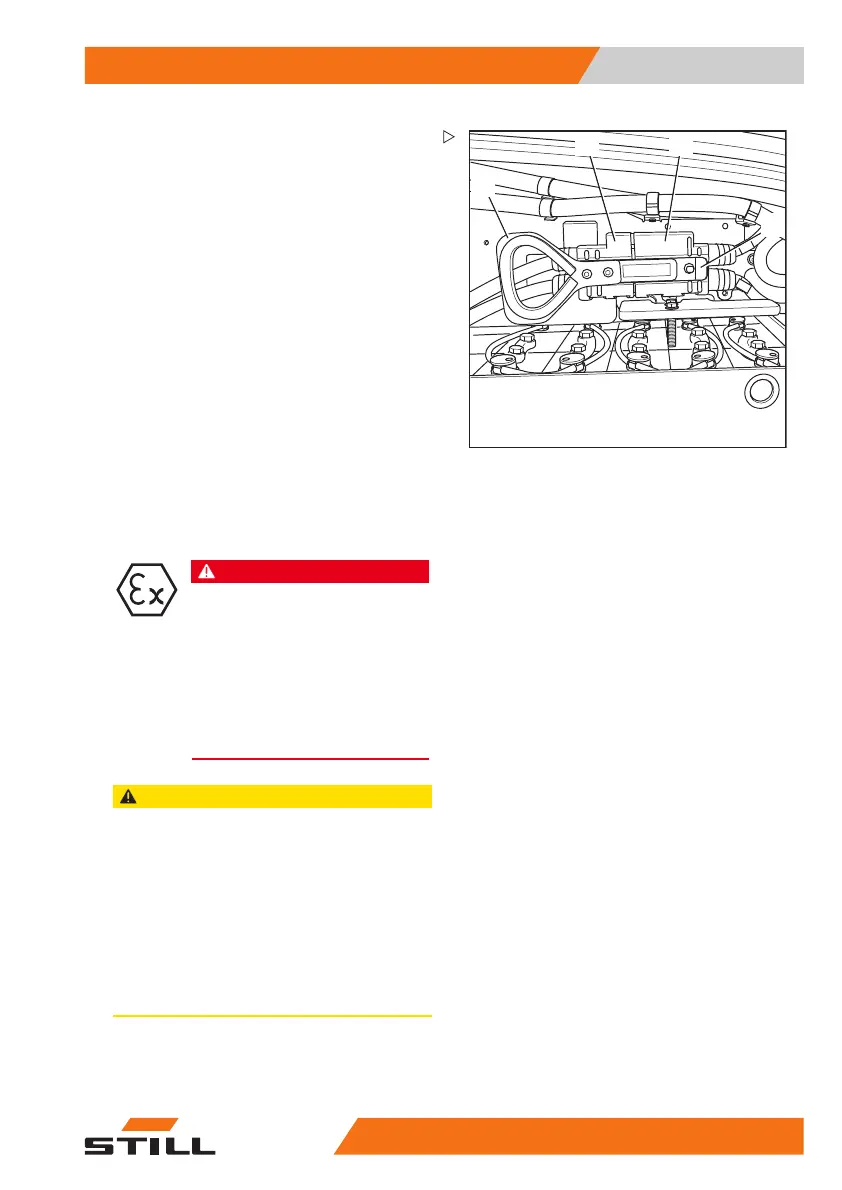

Connecting and disconnecting the b
attery male connector
1
2
3
4
6219_901-008
– Ensure that the battery male connector (2)
and the plug connection (3) on the truck are
dry, clean and free of foreign objects.
– Take hold of the battery male c
onnector by
its handle (1).
– Insert the battery male connector (2) into
the plug connection (3) until the joining plate
(4) clicks into place.
– Close the battery door.
Disconnect the battery male connec-
tor
DANGER
Risk of explosion!
Working on a truck within potentially
explosiveareas can lead to explosions
in the surrounding atmosphere.
No work must be performed on the
truck in potentially explosive areas!
– Disconnect battery male connec-
tors only outside potentially explo-
sive areas.
CAUTION
Potential for damage to the battery male connector!
If the battery male connector is disconnected while
the truck is switched on (under load), an arc will be
produced. This can lead to erosion at the contacts,
which considerably shortens the service life of the
contacts.
– Switch off the truck before the battery male
connector is disconnected.
– Do not disconnect the battery male connector
while the truck is switched on, except in an
emergency.
563
68011531 EN - 06/2019 - 02 307
