4 Operation
Connecting and disconnecting the b
attery male connector

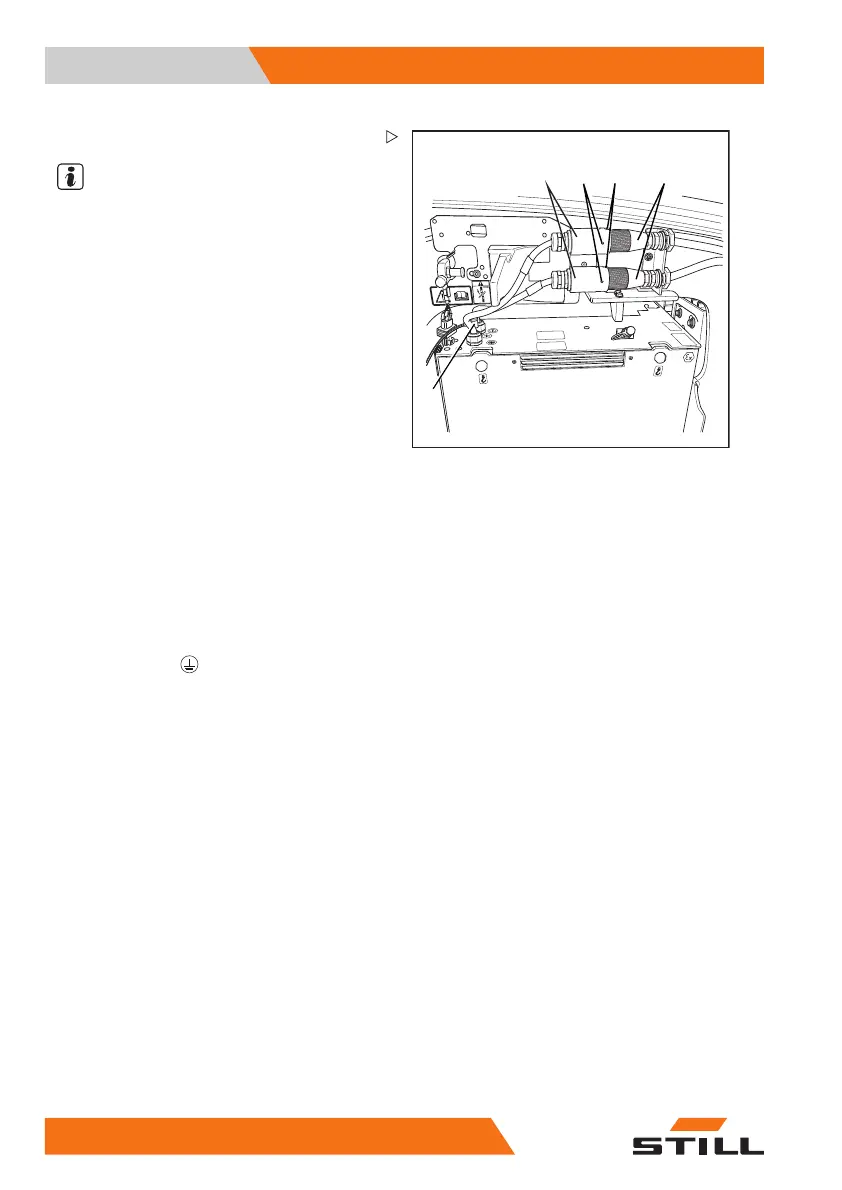

6219_901-020
123 4
5
Category 2 version
NOTE
The category 2 and category 3 versions
of the trucks have different battery male
connectors. The specific features of the
category 2 version are described here. The
battery male connectors on the category 2
version are non-interchangeable.
•
The "positive" battery male connector (red
marking) is routed through two grooves.
•
The "negative" battery male connector (blue
marking) is routed through one groove.
– Open the battery door.
– Loosen the screws (2).
– Disconnect the battery male connectors (2)
from the sockets (3) by unscrewing the bat-
tery male connectors out of the grooves (4).
– Screw the screws (1) back in, so that they
do not get lost.
– Before removing the battery also discon-
nect the potential equalisation (5).
The potential equalisation point is marked with
decal information
.
– Close the battery door.
Category 3 version
– Open the battery door.
308
56368011531 EN - 06/2019 - 02
