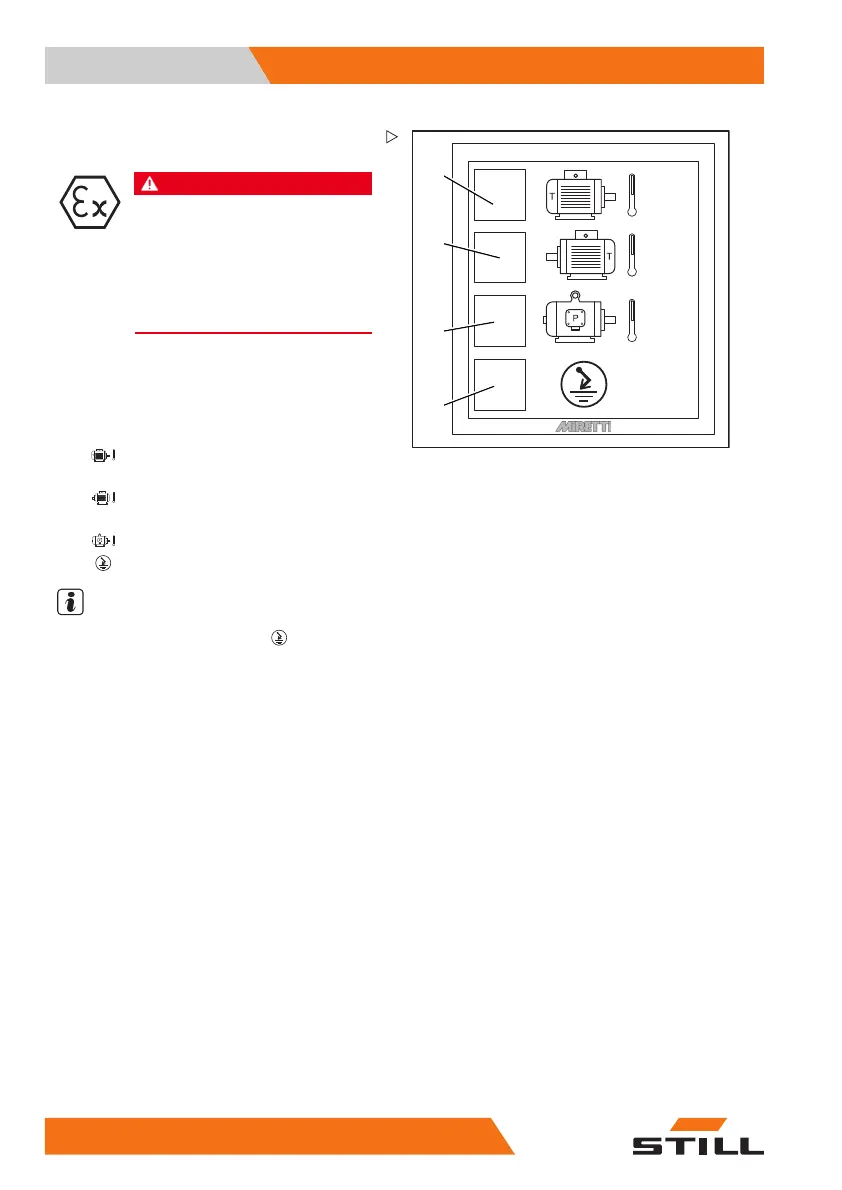

Explosion-protection warning lights
DANGER
Risk of explosion!
During operation, the surface tem-
peratures and insulation values of
various components are monitored by
sensors.
–Donot operate the truck when a
warning light is illuminated.
The explosion-protection warning lights are
located above the display-operating unit, in
the driver's field of view. The warning lights
indicate when limit values are reached.
1
Temperature of the right-hand
traction motor
2
Temperature of the left-hand traction
motor
3
Pump motor temperature
4
Insulation warning
NOTE
The explosion-protection light "insulation
warning" is not present in category 3 trucks.
– See the section on "Behaviour when the
explosion-protection warning lights are
illuminated" in the "Display messages"
chapter.
Battery isolating switch
The battery isolating switch (1) is located on
the right next to the storage compartment. It
switches the electrical system into a de-ener-
gised state.
Usethisswitchtoshu
t down the truck safely.
The battery isolating switch must be labelled in
the language of the country in which it is being
used. Only the authorised service centre may
change the labelling.
There are two versions of the battery isolating
switch:
78 5
6368011531 EN - 06/2019 - 02
