4 Operation
Lifting
DC
B
A
Controlling the lifting syste
musinga
quadruple mini-lever
DANGER
Reaching into or climbing between moving parts
of the truck (e.g. lift mast, sideshifts, working
equipment, load carrying devices etc.) can lead to
serious injury or death and is therefore prohibited.
– Observe the safety regulations for handling
loads.
– Operate the lifting system from the driver's seat
only.

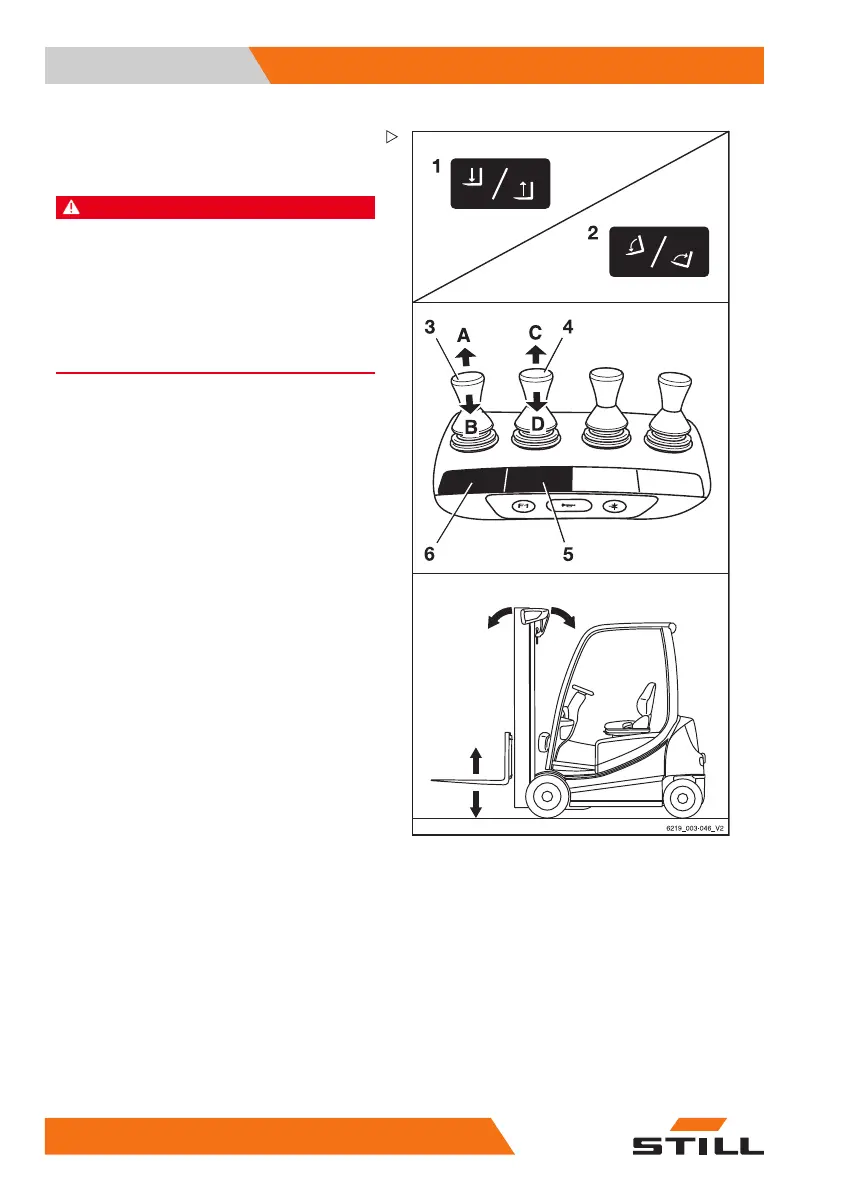

The lifting, lowering and tilting functions of the
lift mast are controlled using the "lifting/lower-
ing" operating lever (3) and the "lift mast" op-
erating lever (4). The adhesive label bearing
the pictograms for the hydraulic functions (1)
is affixed at the designated point (6). The ad-
hesive label (2) is attached at the designated
point (5). The truck is configured at the factory
in accordance with the adhesive label (1).
– Observe the pictograms on the adhesive
labels (1) and (2).
The pictograms are arranged according to
the direction of movement of the operating
lever (3) or (4).
Lifting/lowering the fork carriage
To lift the fork carriage:
– Move the "lifting/lowering" operating
lever (3) in the direction of the arrow (D).
To lower the fork carriage:
– Move the "lifting/lowering" operating
lever (3) in the direction of the arrow (C).
Tilting the lift mast
Totilttheliftmastforwards:
– Move the "lift mast" operating lever (4) in the
direction of the arrow (A).
To tilt the lift mast backwards:
– Move the "lift mast" operating lever (4) in the
direction of the arrow (B).
172
56368011531 EN - 06/2019 - 02
