4 Operation
Lifting
Lifting
Lifting system variants
The movement of the fork carriage and the
lift mast heavily depends on the following
equipment:
• The lift mast with which the truck is
equipped, see ⇒ Chapter "Lift mast ver-
sions", P. 4-162
• The operating device with w
hich the
hydraulic functions are co
ntrolled, see
⇒ Chapter "Operating devic
es for the lift-
ingsystem",P.4-164
Regardless of the equipment variants of the
truck, the basic specifications and procedures
must be complied with, see ⇒ Chapter "Safety
regulations when handing loads", P. 4-189.
Lift mast versions
DANGER
Risk of accident if the lift mast or the load collides
with low ceilings or entrances.
– Note that the inner lift mast or load may be higher
than the fork carriage.
– Observe the heights of ceilings and entrances.
One of the following lift masts may be attached
to the truck:
1

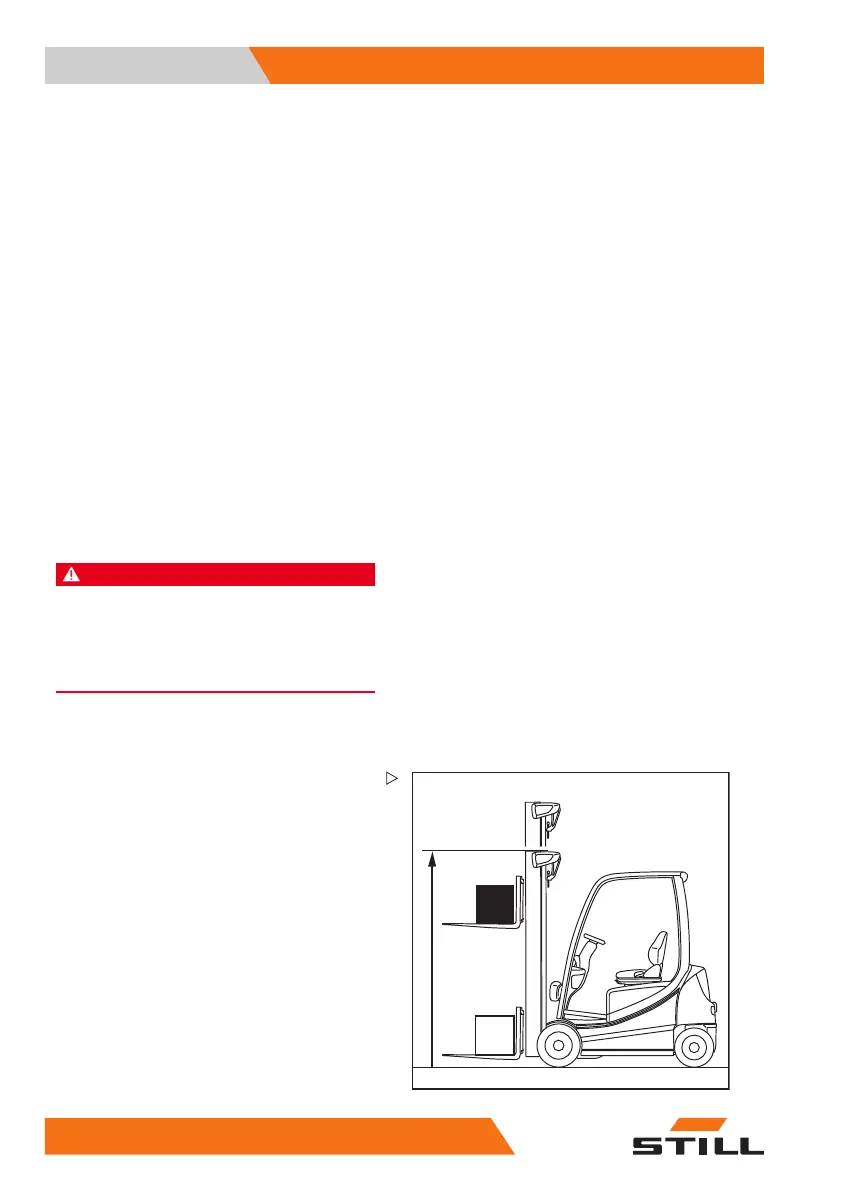

Telescopic lift mast
When lifting, the lift mast rises above the
outer lift cylinders. The lift mast takes the fork
carriage with it via the chains. In this scenario,
the fork carriage rises at twice the speed of the
inner lift mast. The top edge (1) of the inner
lift mast can therefore be higher than the fork
carriage.
162
56368011531 EN - 06/2019 - 02
