Still RX20-20L - Dynamics of the hydraulic movements

Operation 4
Lifting
2
3

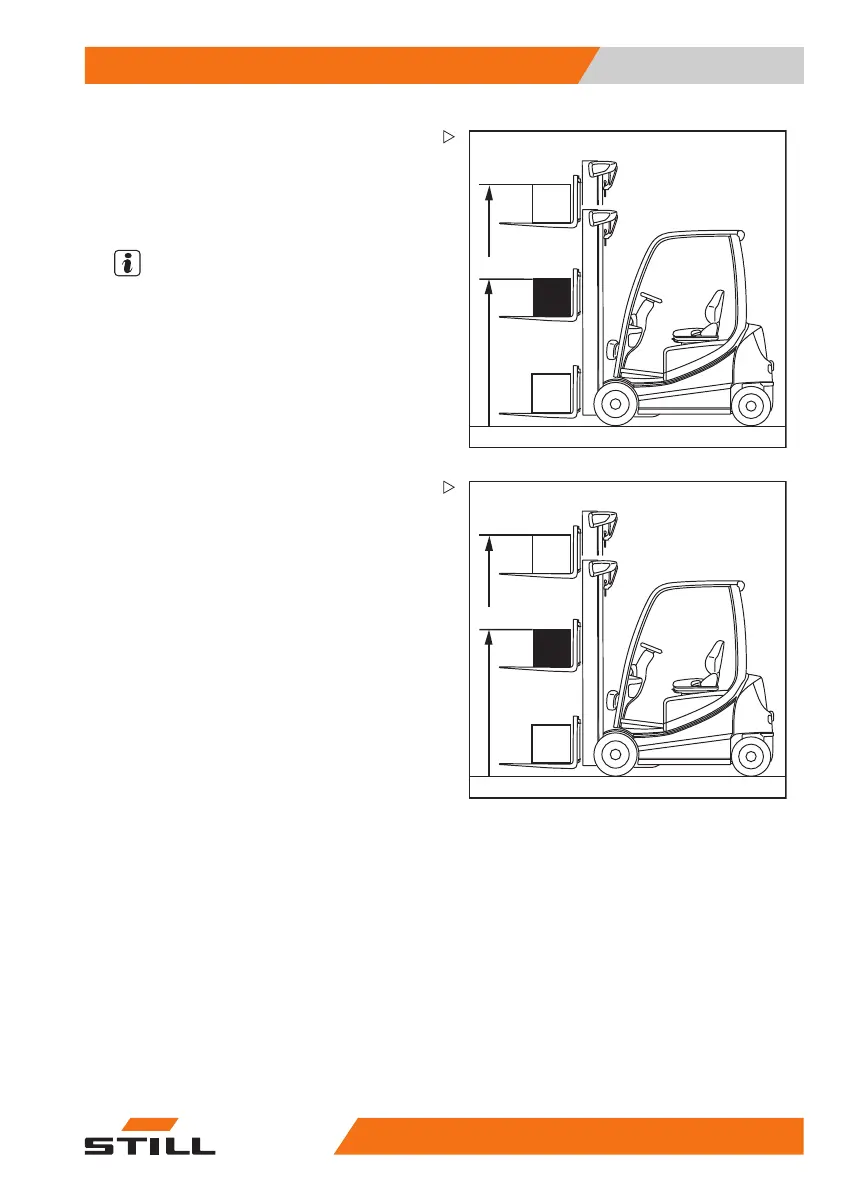

NiHo lift mast (variant)
During lifting, the inner lift cylinder moves up
to free lift (3) and then the outer lift cylinders
raise the inner lift mast up to the maximum
height (2).
NOTE
When lifting above the free lift, the fork car-
riage always remains at the upper edge of the
extending lift mast.
2
3
Triple mast (variant)
During lifting, the inner lift cylinder moves up
to free lift (3) and then the outer lift cylinders
raise the inner lift mast up to the maximum
height (2).
