4 Operation
Replacing and transporting the bat
tery
Replacing the battery using a lift
truck and a battery change frame
WARNING
Risk of accident due to overloading the lift truck!
The load capacity of the lift truck used must at least
match the weight of the battery and the weight of
the change frame.
– Observe the nameplates of the battery and of the
change frame.
CAUTION
Damage to the battery
possible!
– Place the battery c
hange frame along with the
battery only on a fi
rm surface with sufficient
load-bearing cap
acity.
– Do not place the b
attery change frame and
battery on a soft
surface or in a rack.

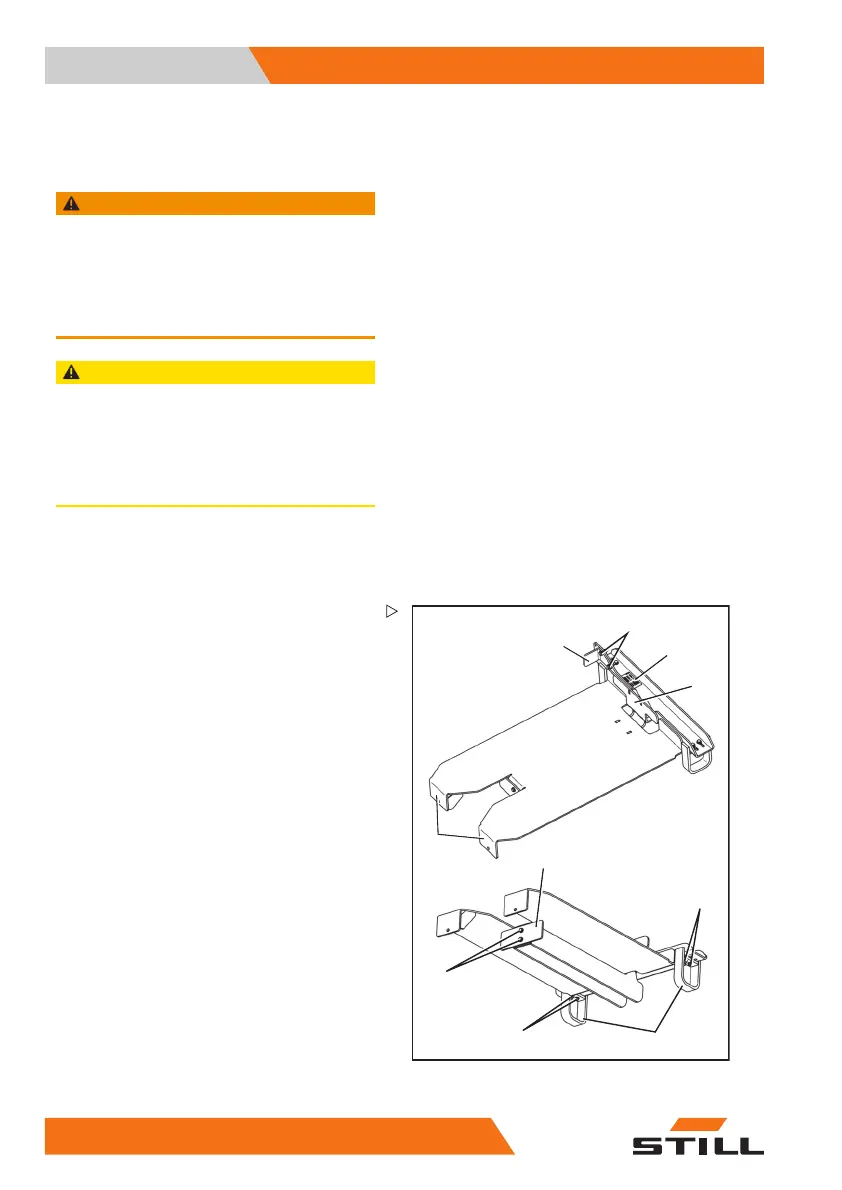

Battery replace
ment using a lift truck is carried
out with a change
frame. The battery remains
on the change fr
ame for charging and storage.
1
2
3
4
8
9
5
5
6
7
Preparing
– Check the nameplate (3) on the change
frame to ensure that the selected change
frame has the required load capacity.
– Check the change frame for deformation
and breaks or cracks.
Faulty change fr
ames must not be used. They
must be replaced
by the authorised service
centre.
The distance between the feet (6) can be
adjusted to ensure that the change frame
picks up the battery precisely.
– To adjust the feet (6), loosen the screw
joint (5).
– Adjust the feet
(6) of the change frame
accordingtoth
e dimensions of the fork
arms.
– Re-tighten the screw joint (5).
The side stop (1) must also be adjusted.
– To adjust th
esidestop(1),loosenthescrew
joint (2).
334
56368011531 EN - 06/2019 - 02
